Cortador de Grama com Controle Remoto Kayama modelo KCGCR12G

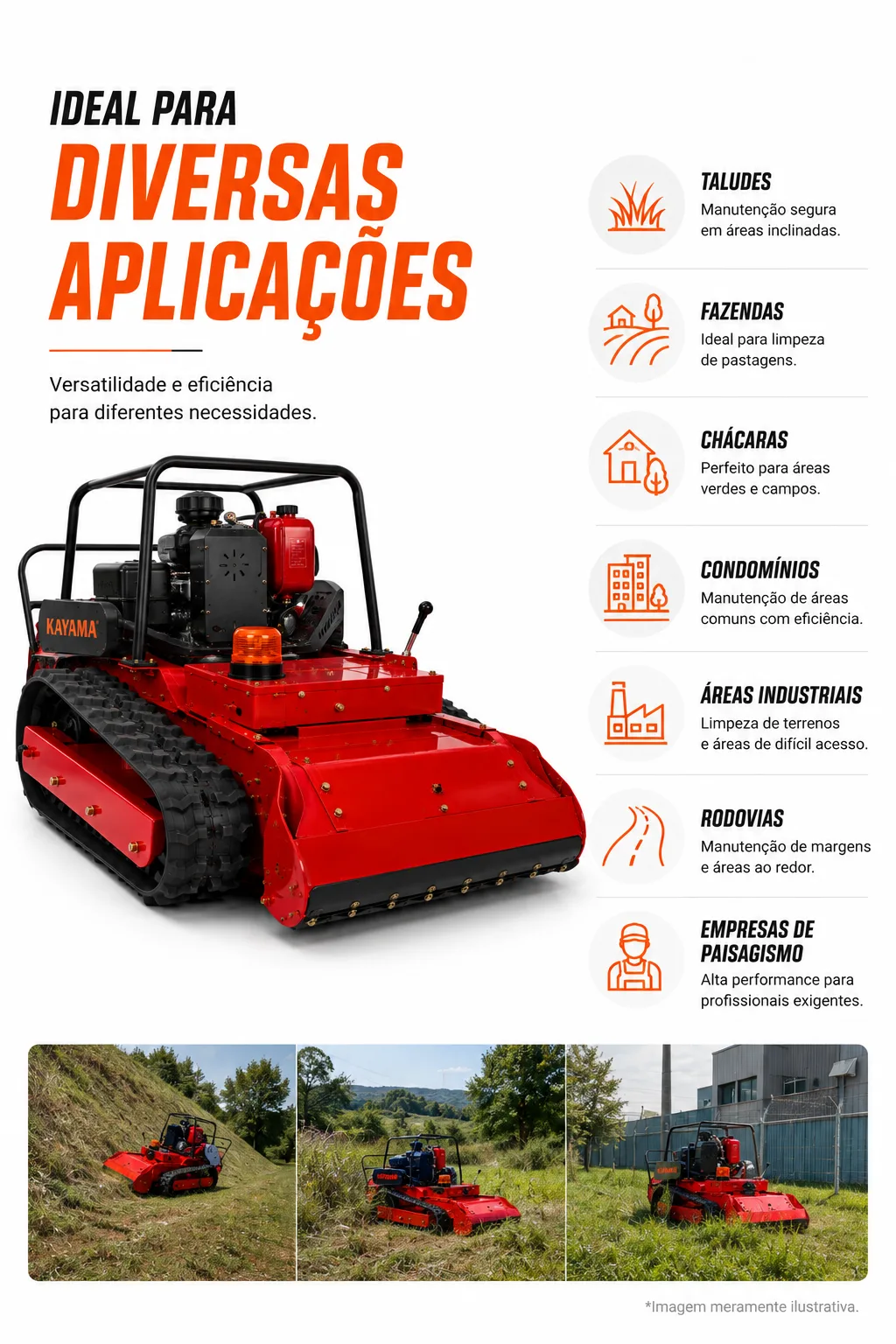

The Kayama KCGCR12G Remote-Controlled Mower is a self-propelled machine designed for professional maintenance of large green areas, sloped terrain, embankments, and difficult-access locations.

The equipment combines electric tracked drive, a cutting system powered by a dedicated diesel engine, and remote control, providing mobility and distance operation. This configuration allows the operator to control the machine's movement and functions while maintaining greater distance from the equipment.

Technical Features

• Product: Self-propelled remote-controlled mower
• Brand: Kayama
• Model: KCGCR12G
• Starting system: Electric
• Drive: Electric tracked drive
• Cutting system: powered by a dedicated diesel engine
• Operation: Remote control
• Cutting width: 800 mm
• Cutting height: 20 to 200 mm, adjustable
• Travel speed: 0 to 5 km/h
• Maximum stated working slope: up to 45°
• Stated productivity: 4,000 to 4,700 m²/h
• Maximum stated remote-control range: up to 1,000 m
• Stated cutting capacity for woody vegetation: approximately 60 to 70 mm
• Charging power supply: 127/220 Vac – 50/60 Hz
• Approximate weight: 338 kg

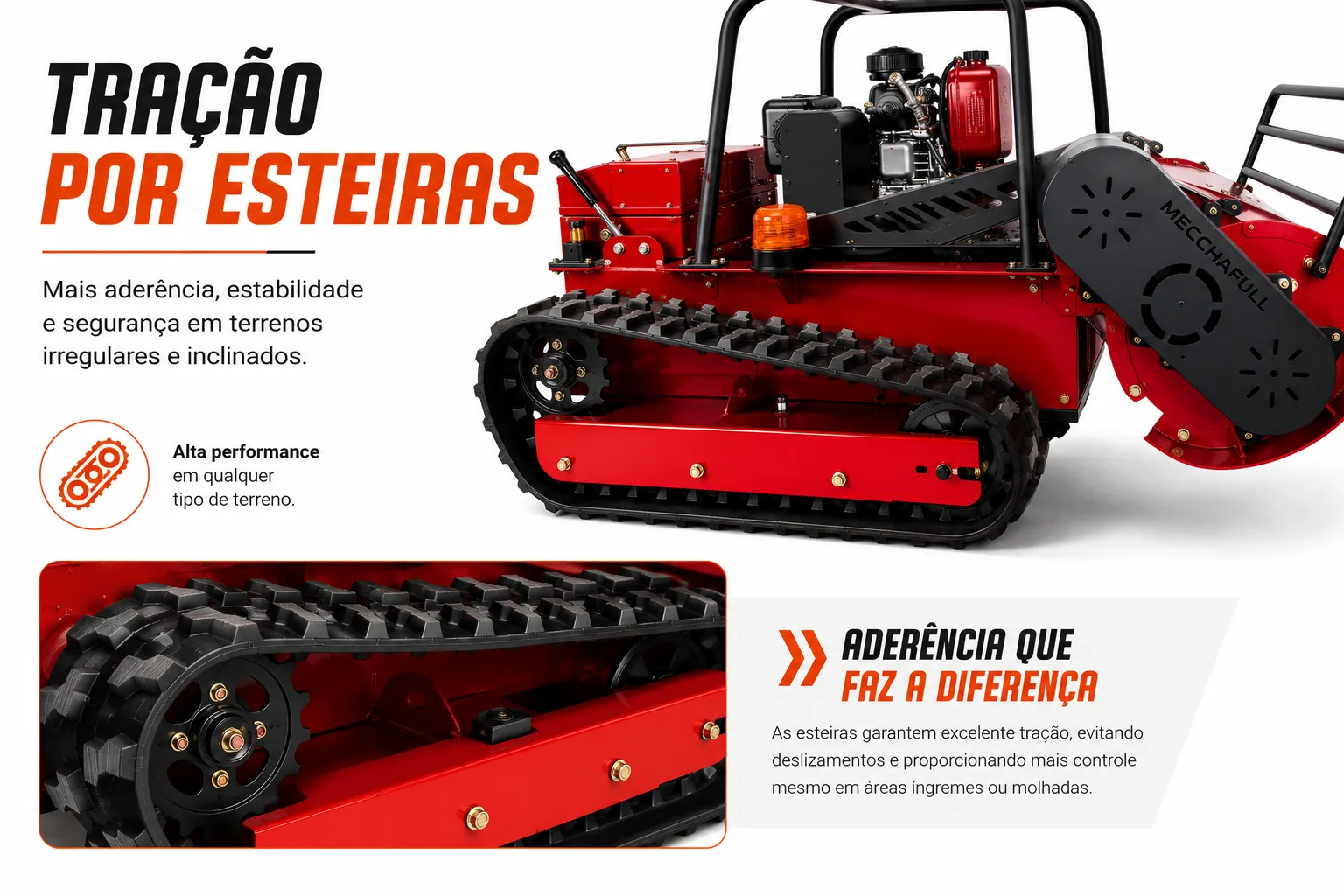

Drive System

The electric tracked drive provides a large contact area with the ground, supporting movement across lawns, uneven terrain, slopes, and other surfaces with varying conditions.

Electric drive allows movement and directional changes to be controlled through the remote-control system, providing greater control during operation.

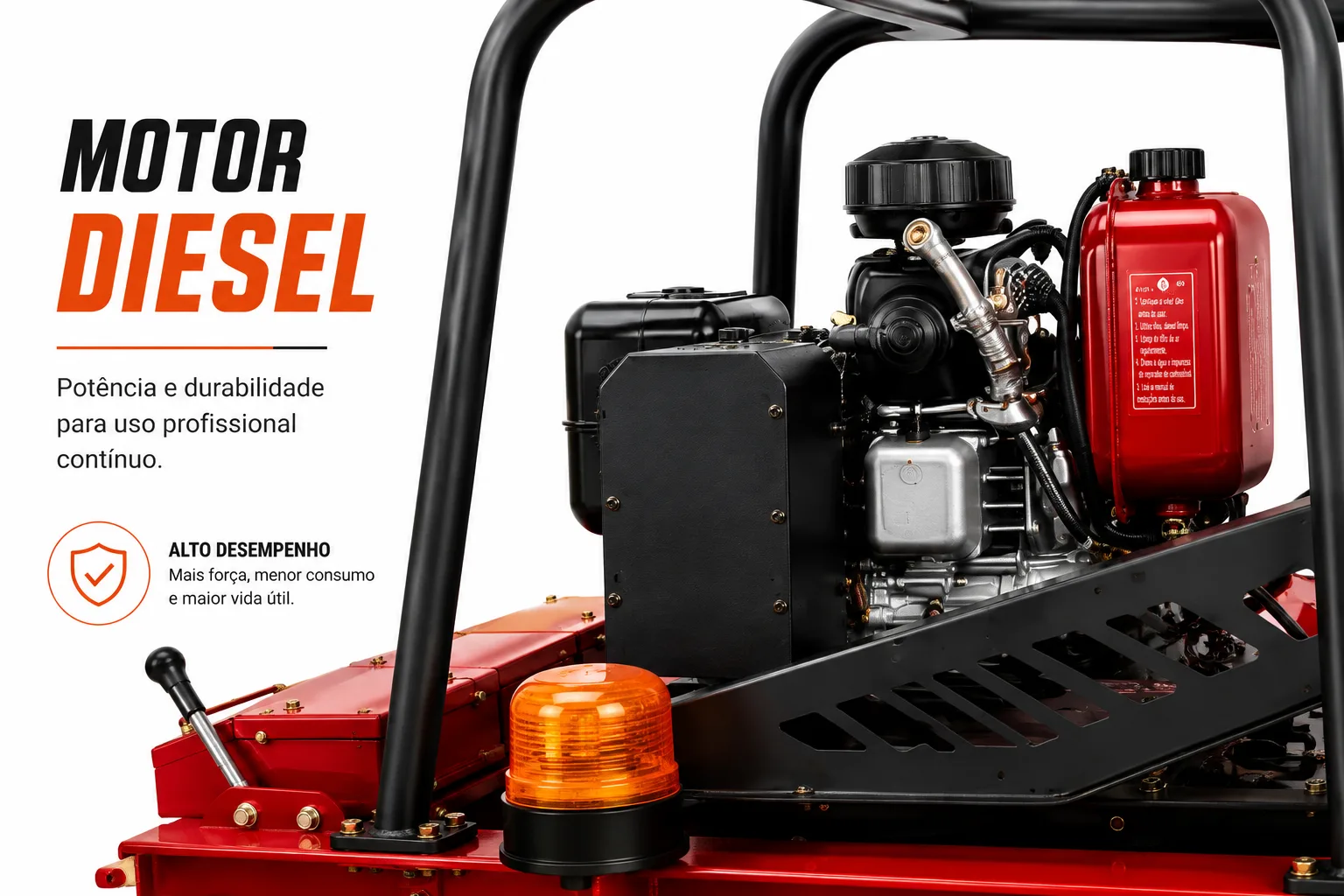

Cutting System

The KCGCR12G uses a dedicated diesel engine to power the cutting system, allowing the cutting mechanism to operate independently from the electrical system responsible for traction.

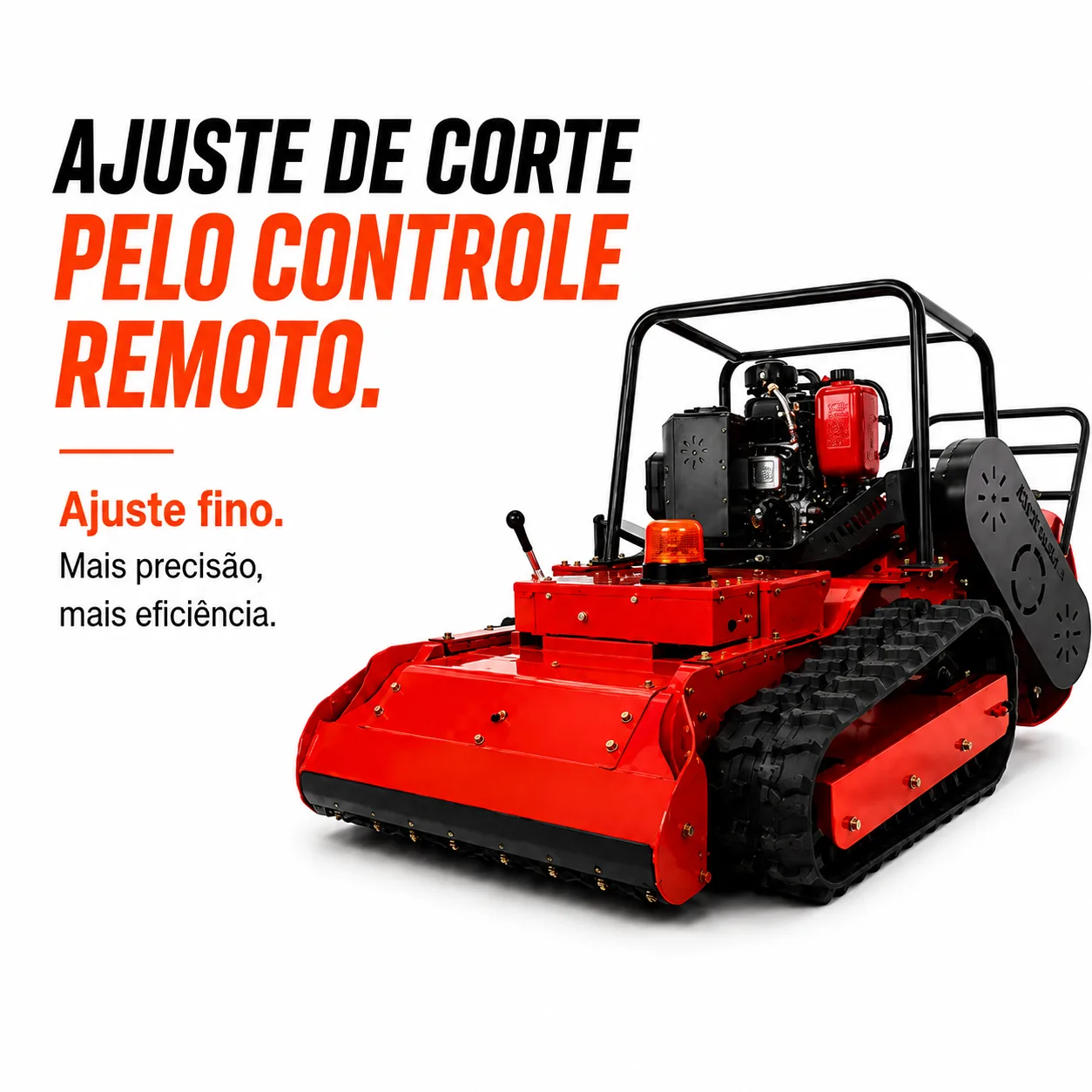

The working width is 800 mm, with adjustable cutting height from 20 to 200 mm, allowing the cut to be adapted to vegetation characteristics and the desired finish.

Actual cutting capacity may vary according to vegetation species, density, moisture, thickness, height, travel speed, and terrain conditions.

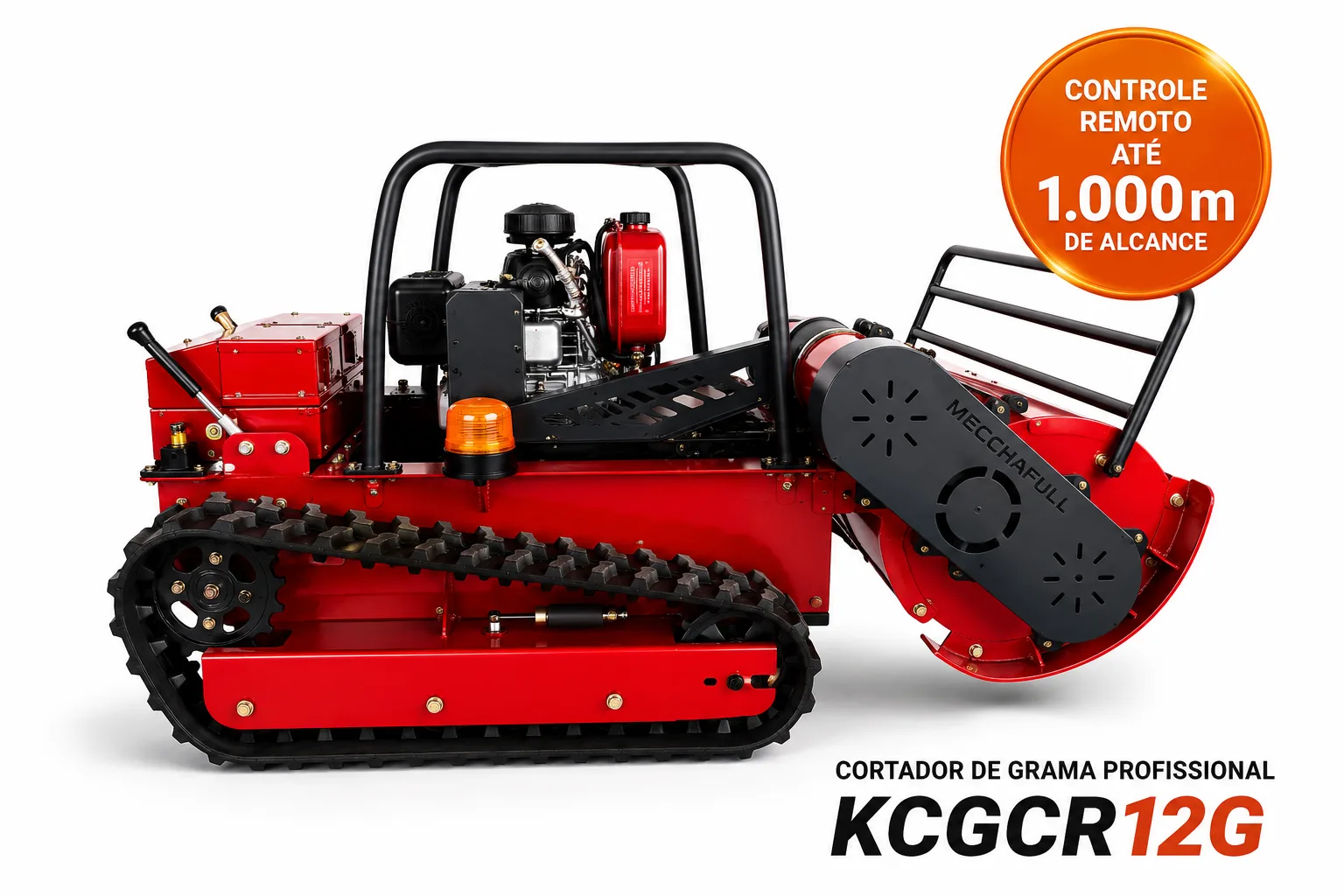

Remote Control

The remote-control system allows the operator to control machine movement and operating functions from a distance.

This feature is particularly useful where remaining close to the equipment is not desirable, such as slopes, embankments, uneven terrain, areas with tall vegetation, and difficult-access locations.

Effective remote-control range may vary depending on obstacles, interference, environmental conditions, and radio-frequency system characteristics.

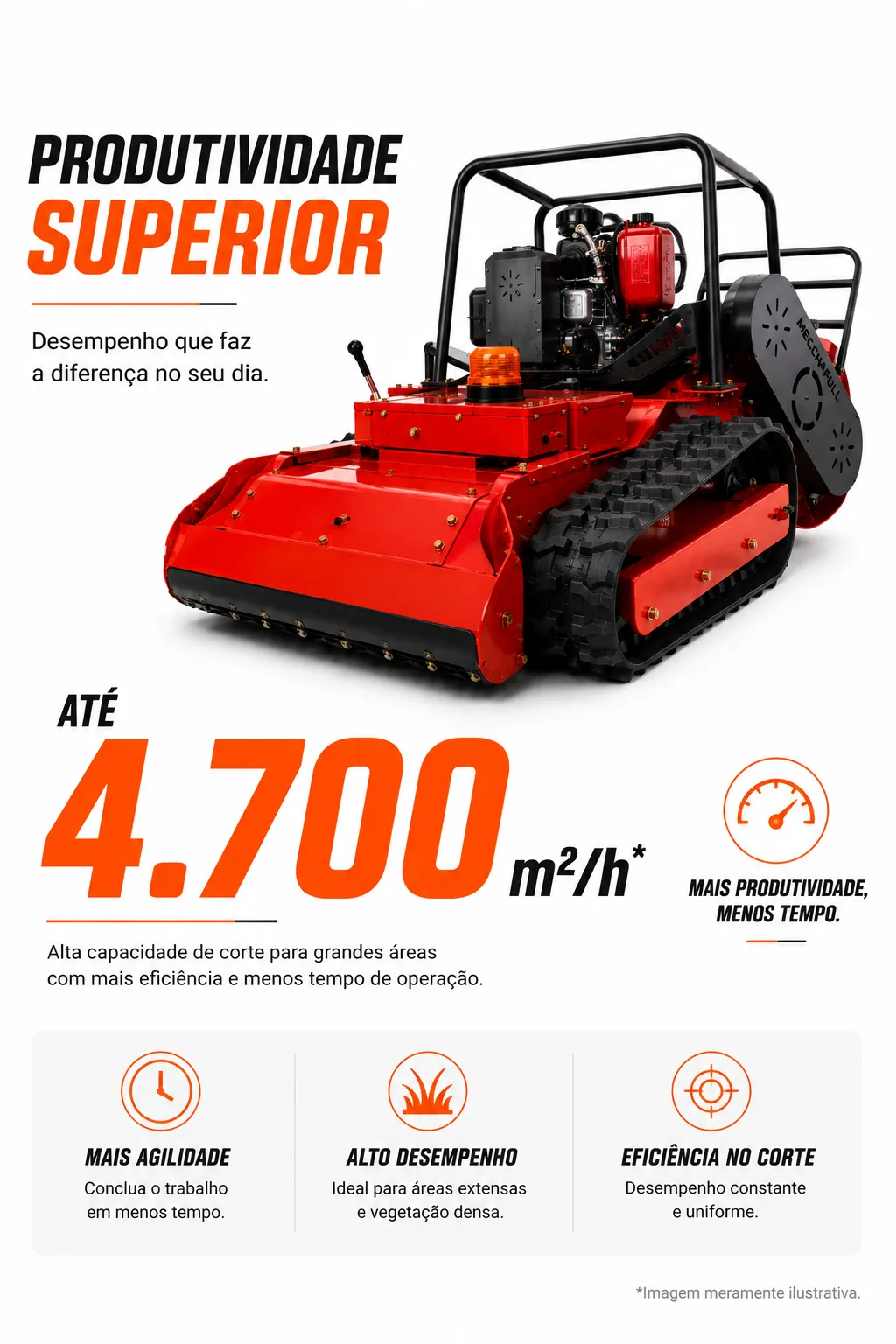

Productivity

The stated productivity is 4,000 to 4,700 m²/h.

Actual performance may vary according to vegetation density and height, slope, soil moisture, obstacles, operating speed, and the number of required maneuvers.

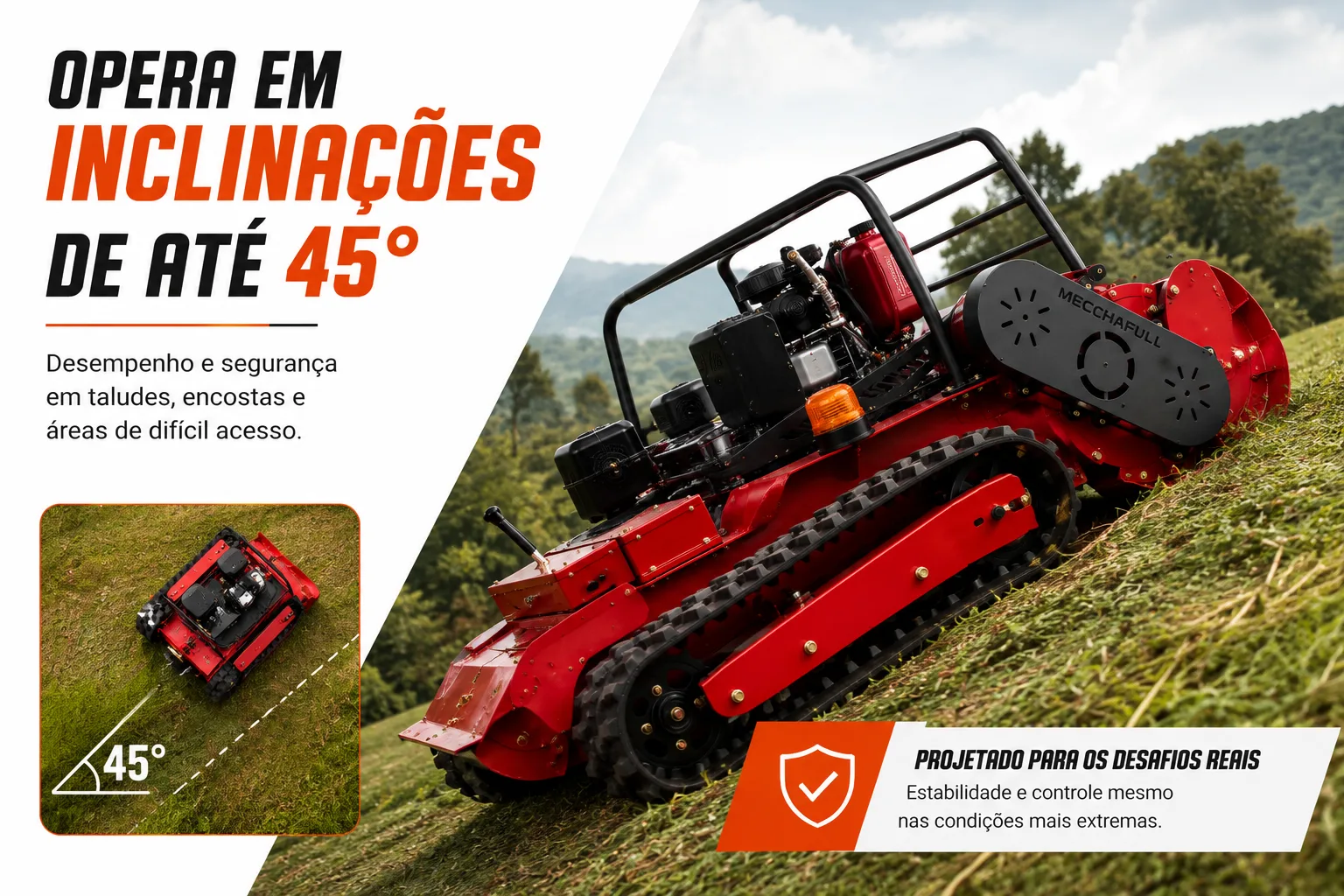

Operation on Slopes

The stated working capability is up to 45° of slope.

Operation on slopes must take into account soil conditions, track traction, travel direction, irregularities, moisture, and equipment weight distribution. Manufacturer-specified limits and procedures must be followed.

Electrical System and Charging

The equipment uses an electrical system for drive and controls, with charging compatible with 127/220 Vac – 50/60 Hz, according to the manufacturing configuration.

The charging system and other electrical components must be used according to the manufacturer's technical specifications and instructions.

Operational Safety

Before operation, the work area must be inspected and stones, metal parts, cables, loose branches, and other objects that could be struck by the cutting system must be removed.

People and animals must remain away from the work area during operation.

Remote control reduces the need for the operator to remain continuously near the machine, but does not eliminate the risks inherent to operating a cutting machine. Operation, maintenance, and adjustment must follow the manufacturer's instructions and be performed by trained personnel.

Dimensions

1,560 × 980 × 820 mm.

NCM: 8433.90.10
GTIN: 7900370019301
