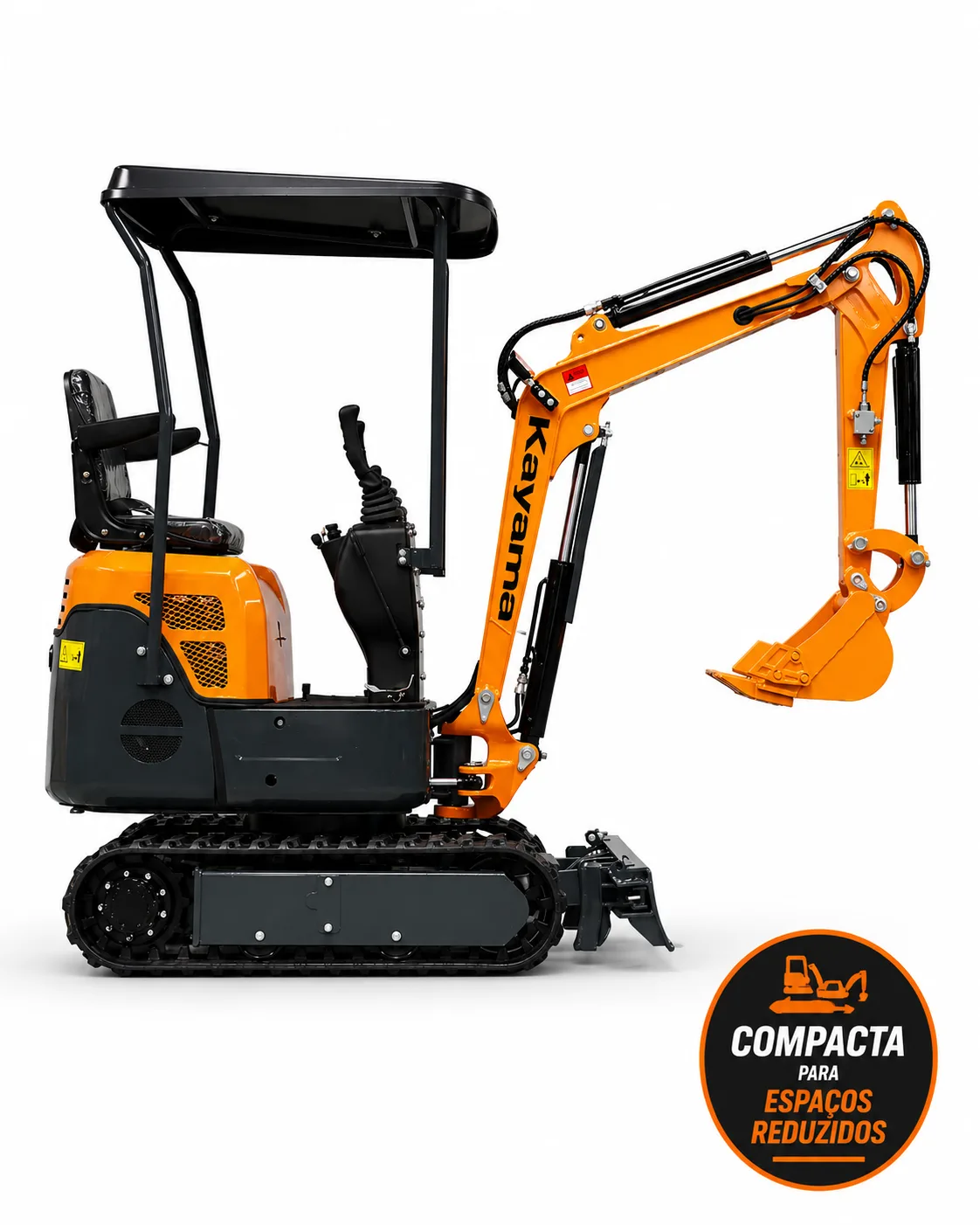

Mini Escavadeira Kayama modelo:KME1000TD 1t

The Kayama KME1000TD Mini Excavator was developed for professional operations requiring mobility, precision, stability and digging capability in restricted spaces.

Its main feature is the combination of a telescopic chassis and swing boom, allowing the machine's width to be adapted to site conditions while supporting operational stability according to the requirements of the job.

Equipped with a 1-cylinder diesel engine, hydraulic system and 360° turret rotation, the KME1000TD is designed for construction, maintenance, infrastructure, landscaping and other applications requiring a compact and versatile machine.

Technical Description

The KME1000TD combines a compact structure with features designed for operation in locations where larger conventional machines may have limited access.

The telescopic chassis allows different width configurations, while the swing boom provides greater flexibility for adapting the digging assembly to site conditions.

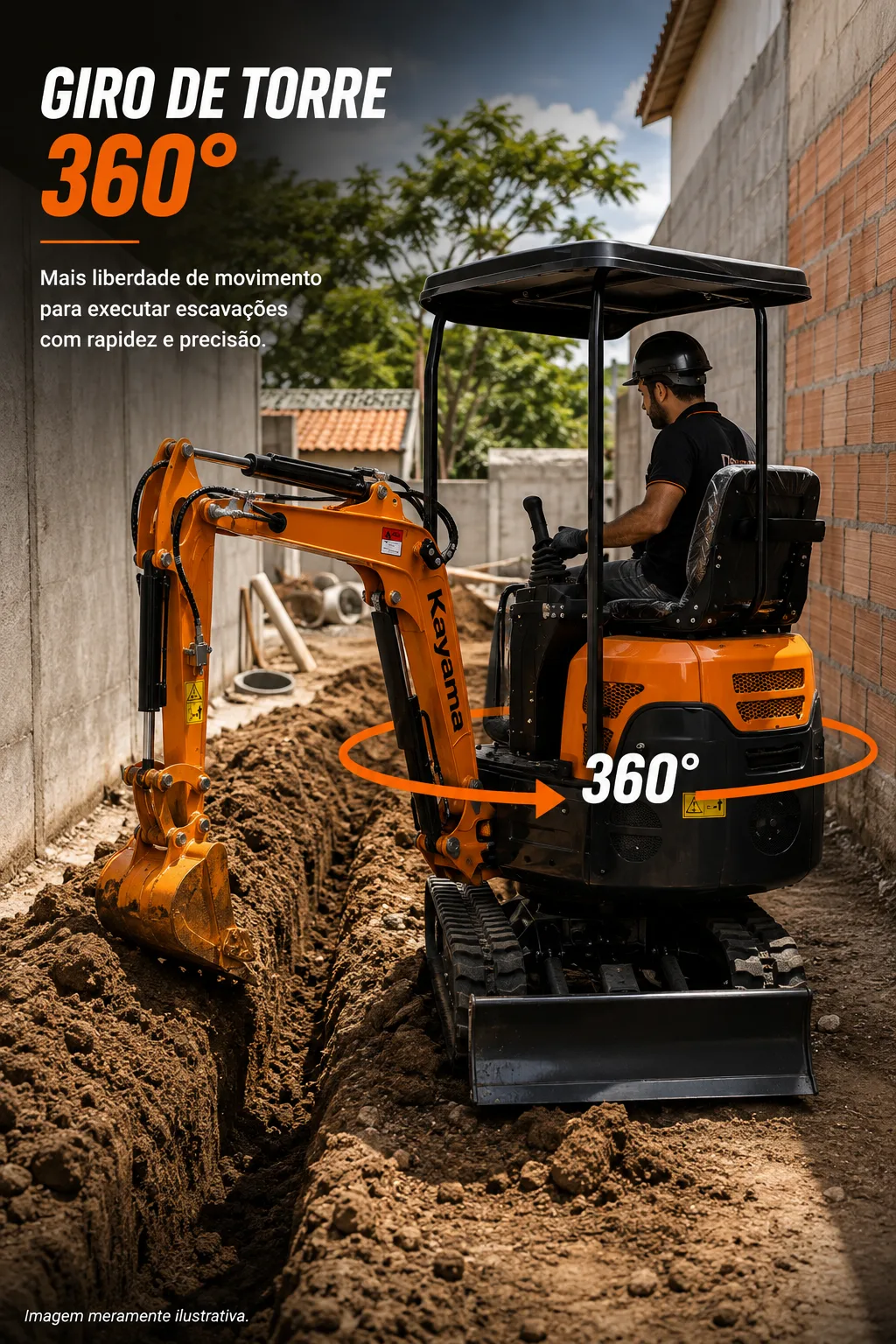

The 360° turret rotation allows digging and positioning movements without continuously repositioning the entire machine, supporting productivity during operating cycles.

The hydraulic system provides the power required for machine movements and compatible attachments, allowing controlled operation.

Main Features

• Model: KME1000TD
• Type: Mini excavator
• Engine: 1-cylinder diesel
• Approximate power: 12 hp
• Operating weight: approximately 1,050 kg
• Hydraulic system: approximately 20 L/min | 18 MPa
• Turret rotation: 360°
• Chassis: Telescopic
• Boom: Swing
• Bucket capacity: 300 mm / approximately 0.03 m³
• Digging depth: approximately 1.7 m
• Dumping height: approximately 2.6 m
• Digging radius: approximately 3.03 m
• Travel speed: 1.5 to 2.5 km/h
• Front blade: approximately 1,000 mm

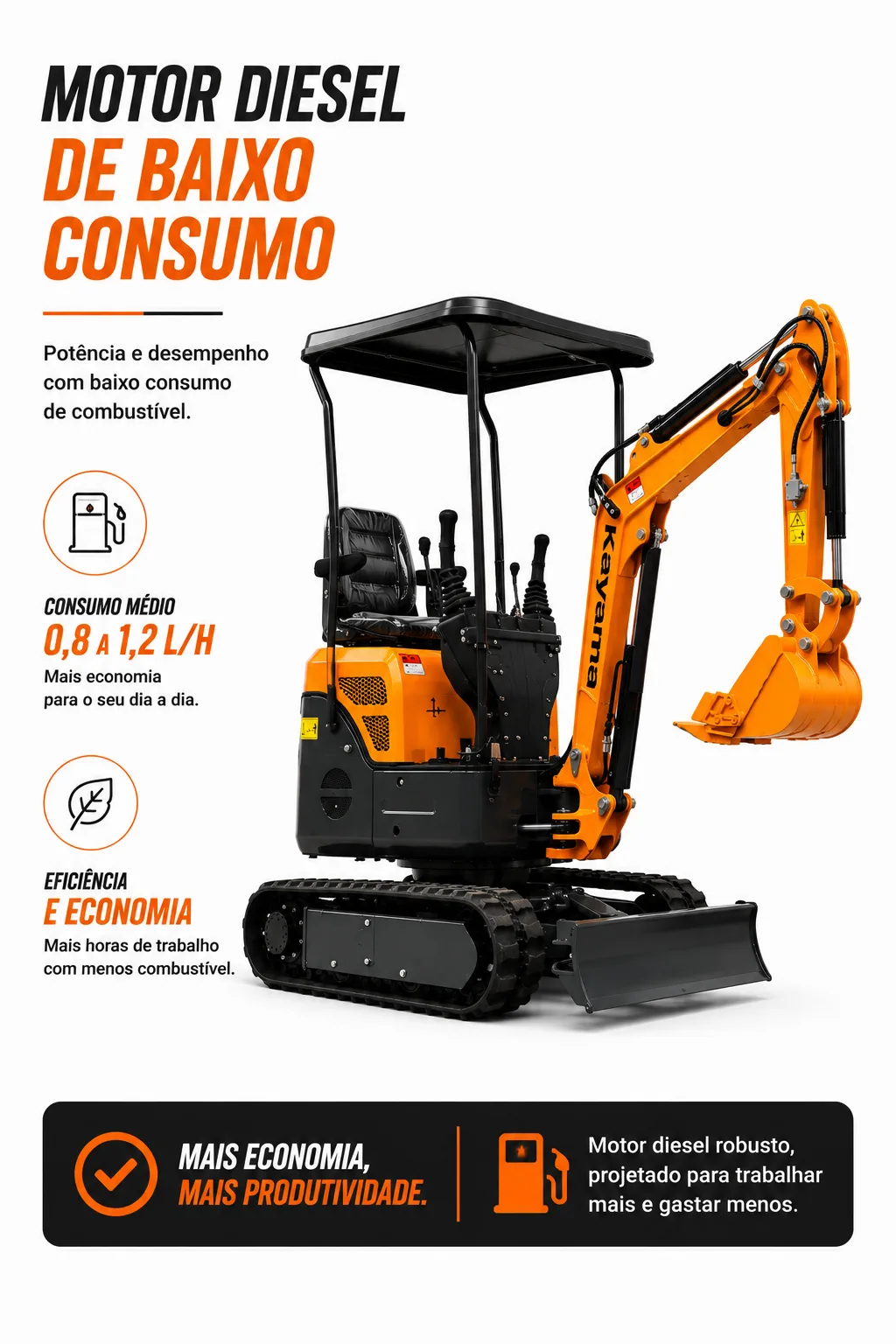

• Average fuel consumption: approximately 0.8 to 1.2 L/h
• Fuel tank capacity: approximately 8 to 12 liters

Telescopic Chassis and Swing Boom

The telescopic chassis allows the machine configuration to be adjusted according to available space and operating conditions.

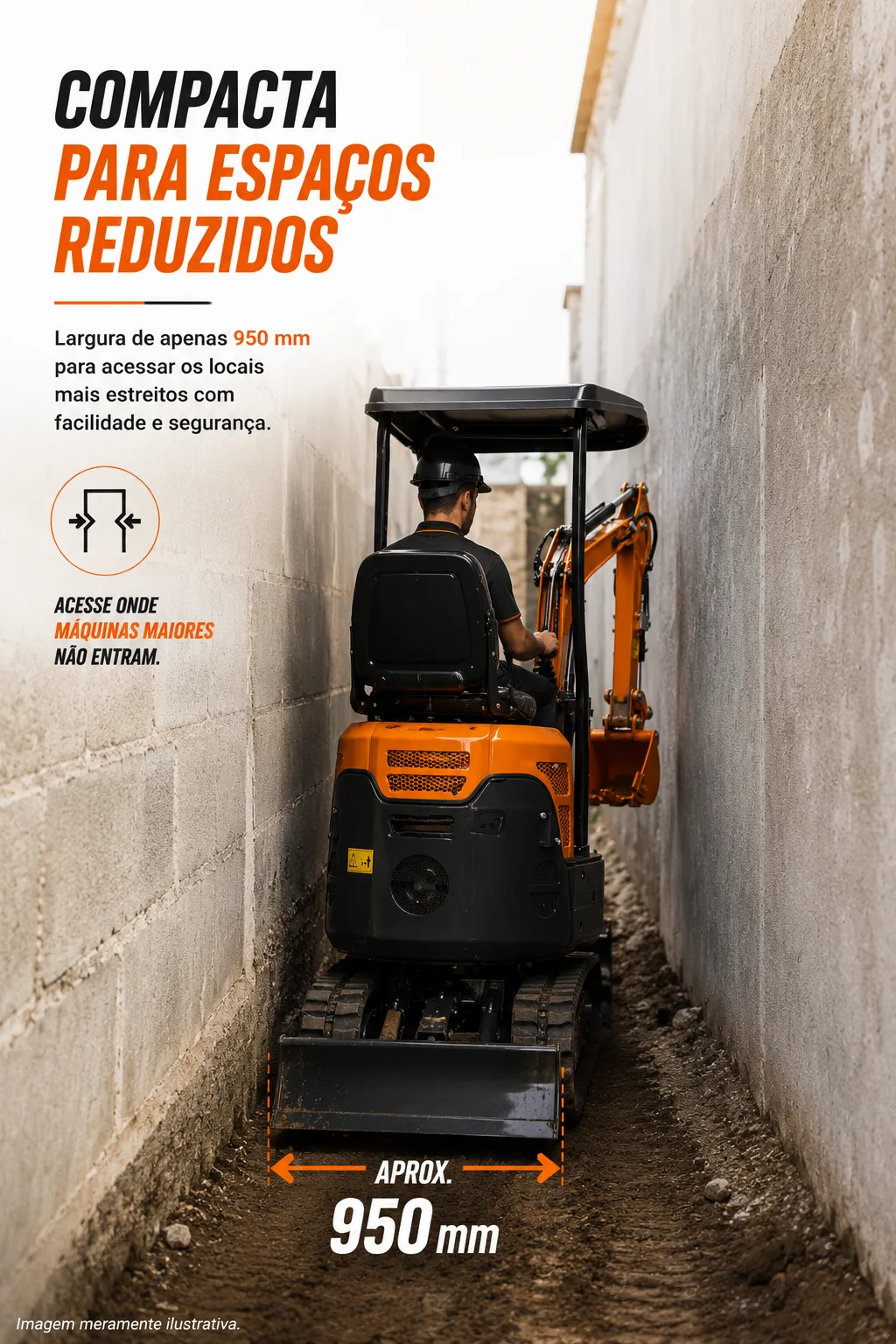

In its narrow configuration, the operating width is approximately 950 mm, facilitating access to restricted areas. With the chassis extended, the width reaches approximately 1,200 mm, providing a wider base for certain operating conditions.

The swing boom provides greater flexibility to the digging assembly, allowing the machine to work more effectively according to its position and site characteristics.

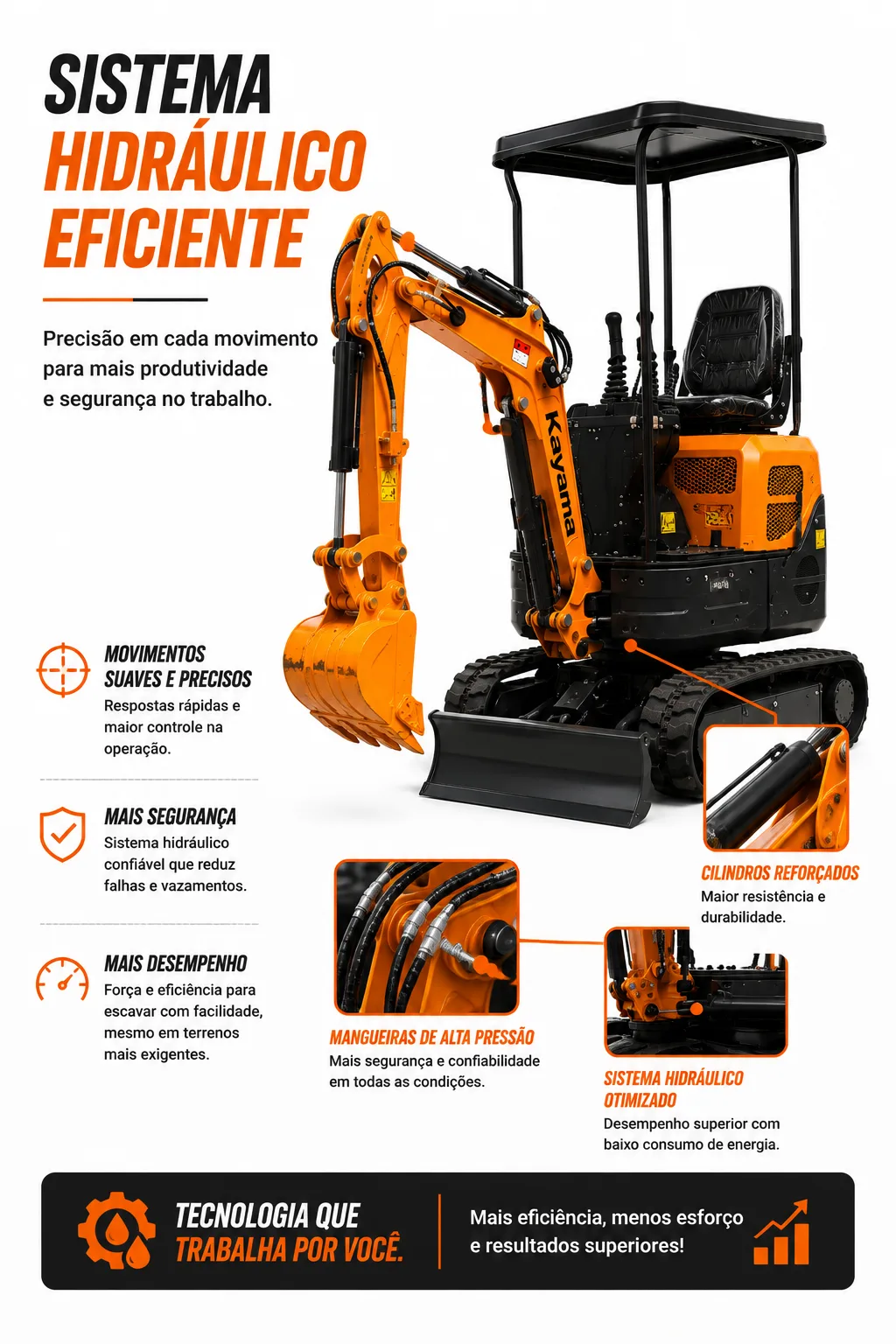

Hydraulic System

The KME1000TD uses a hydraulic system with approximately 20 L/min flow and 18 MPa pressure, according to the equipment configuration provided.

The hydraulic system powers the machine's main movements and enables the use of compatible hydraulic attachments when their technical requirements are met.

Operating Performance

The combination of diesel engine, compact structure, 360° turret rotation, telescopic chassis and swing boom provides a configuration designed for restricted-access operations.

The machine can perform digging, material handling and dumping cycles using its bucket, while compatible attachments may also be used when their hydraulic and mechanical requirements are satisfied.

Operational Benefits

• Access to restricted spaces due to its compact configuration
• Greater adaptation to ground conditions through the telescopic chassis
• Operational stability with the possibility of increasing chassis width
• 360° turret rotation
• Diesel engine for professional applications
• Hydraulic system for machine movement and compatible attachments
• Suitable for urban construction projects
• Versatility with different compatible attachments
• Low stated fuel consumption, depending on operating conditions
• Convenient transportation and mobility

Operating Dimensions

Approximate closed width: 950 mm
Approximate open width: 1,200 mm

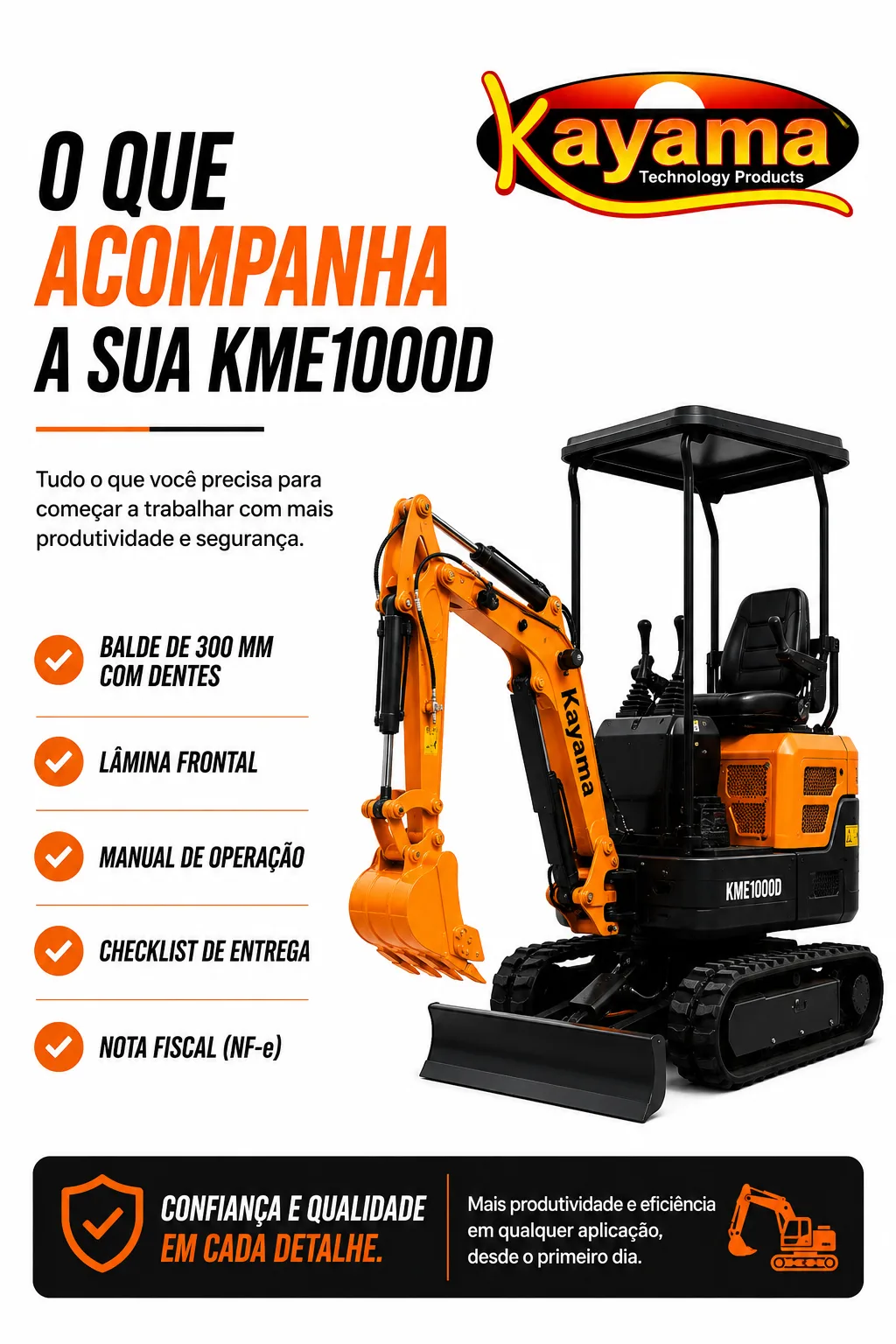

Included Items

• KME1000TD Mini Excavator
• 300 mm toothed bucket
• Front blade
• Operation manual
• Delivery checklist
• Invoice

Attachments and Optional Equipment

Depending on configuration and availability, the following attachments and accessories may be supplied or used:

• 200, 400 and 500 mm buckets
• 800 mm cleaning bucket
• Hydraulic breaker
• Auger drill
• Grapple
• Ripper
• Quick coupler
• Reinforced tracks
• Canopy or cab

Attachment use must consider hydraulic, mechanical and structural compatibility between the accessory and the machine.

Compatibility

Before installing additional attachments, the KME1000TD and accessory specifications must be checked.

The following should be evaluated:

• Coupling system
• Mounting point dimensions
• Machine operating capacity
• Required hydraulic flow and pressure
• Attachment weight
• Boom structural capacity
• Hydraulic connections
• Specific attachment requirements

Compatibility must not be determined solely by the attachment name or category.

Operation and Safety

Before operation, check ground conditions, hydraulic system operation, pivot points, installed attachment and overall machine condition.

On uneven terrain, the telescopic chassis configuration should be selected according to the stability and safety conditions of the operation.

The operator must respect the machine's capacity limits and use appropriate personal protective equipment.

Warranty and Support

• 12 months for the structure
• 3-month legal warranty for components
• Spare parts available in Brazil
• Specialized technical support

Warranty conditions are subject to the applicable product and sales terms.

Logistics and Delivery

• Carrier shipping with scheduling
• Product supplied with invoice
• Equipment supplied according to the sales configuration

Registration Information

NCM: 8430.69.19
GTIN: 7900370019196

Kayama Product

The Kayama KME1000TD Mini Excavator was developed for professional operations requiring a compact, versatile machine adaptable to different working conditions.

Its combination of telescopic chassis, swing boom, 360° turret rotation, diesel engine and hydraulic system provides a configuration suitable for urban construction, civil works, infrastructure, landscaping, drainage and restricted-access applications.
