Quadro de Distribuição Embutir para 18 disjuntores QDE18D Kayama
Kayama QDE18D Flush-Mounted Distribution Board for up to 18 circuit breakers for electrical circuit organizationKayama QDE18D Flush-Mounted Distribution Board for up to 18 circuit breakers for electrical circuit organization
The Kayama QDE18D Flush-Mounted Distribution Board is designed to accommodate up to 18 circuit breakers, providing a centralized location for organizing electrical circuit protection devices. Its flush-mounted configuration allows integration into the wall or mounting structure defined by the electrical design.
- SKU
- 07190007
- Category
- Embed
Talk to a specialist
Our team of consultants can help with specification and sizing.
Technical Description
The Kayama QDE18D Flush-Mounted Distribution Board is designed to organize electrical protection devices in installations requiring space for up to 18 circuit breakers.
Its flush-mounted configuration allows the enclosure to be integrated into a wall or prepared mounting structure.

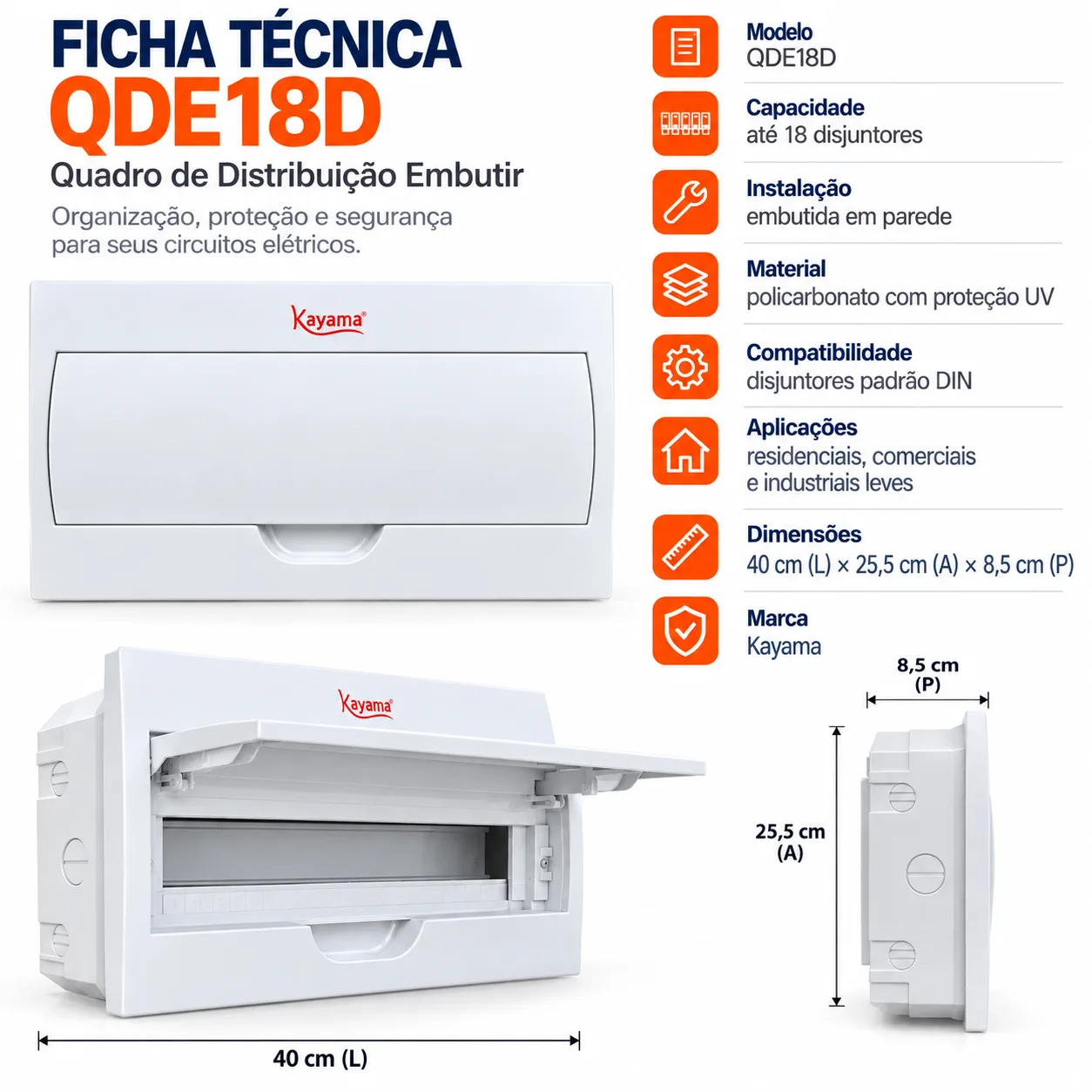

Confirmed Technical Characteristics
- Brand: Kayama
- Model: QDE18D
- Type: Flush-mounted distribution board
- Stated capacity: up to 18 circuit breakers
- Installation type: flush-mounted
- Purpose: organization of electrical circuit protection devices

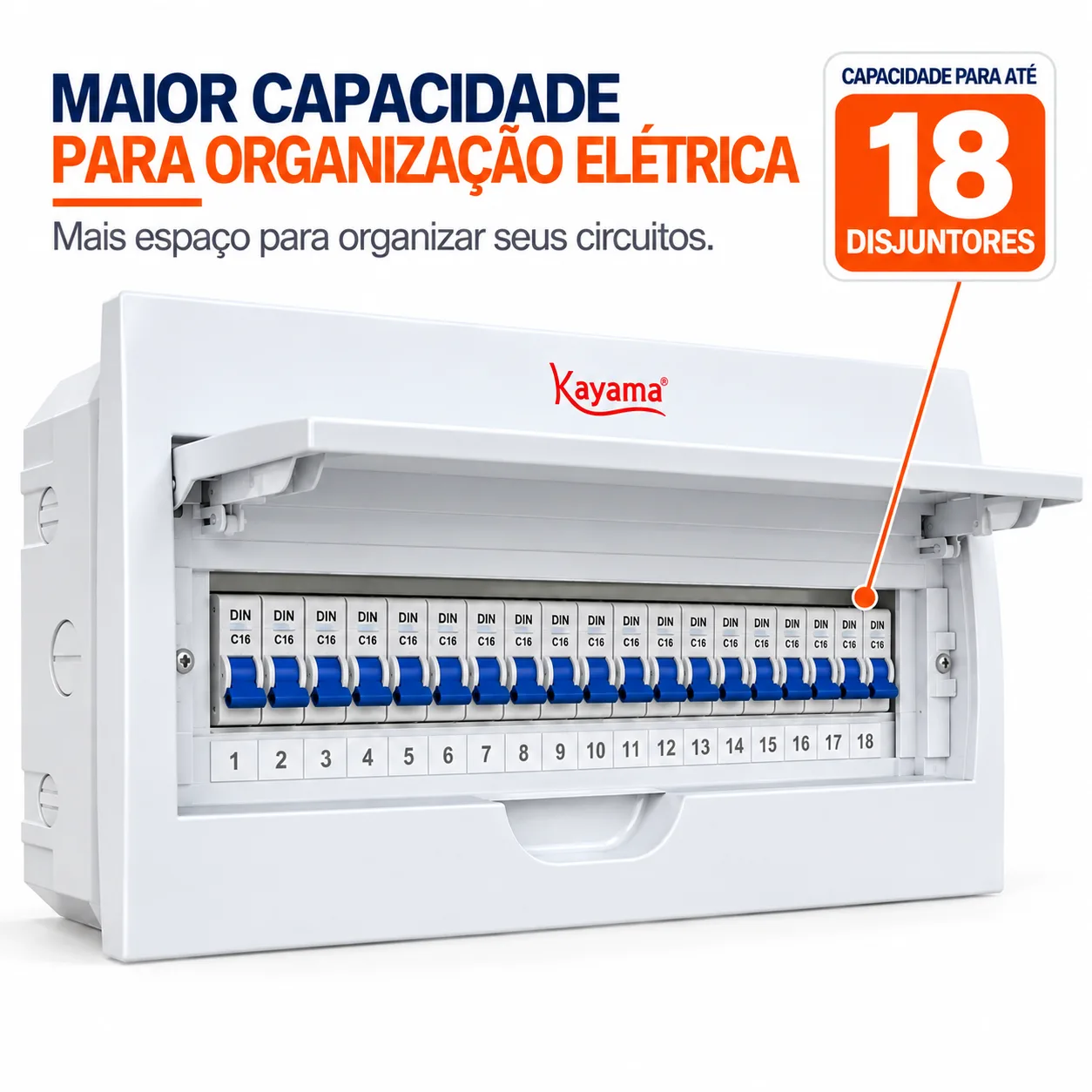

Capacity for 18 Circuit Breakers
The QDE18D is identified as a distribution board for 18 circuit breakers.
Actual installation must consider device dimensions, available internal space and the electrical design.

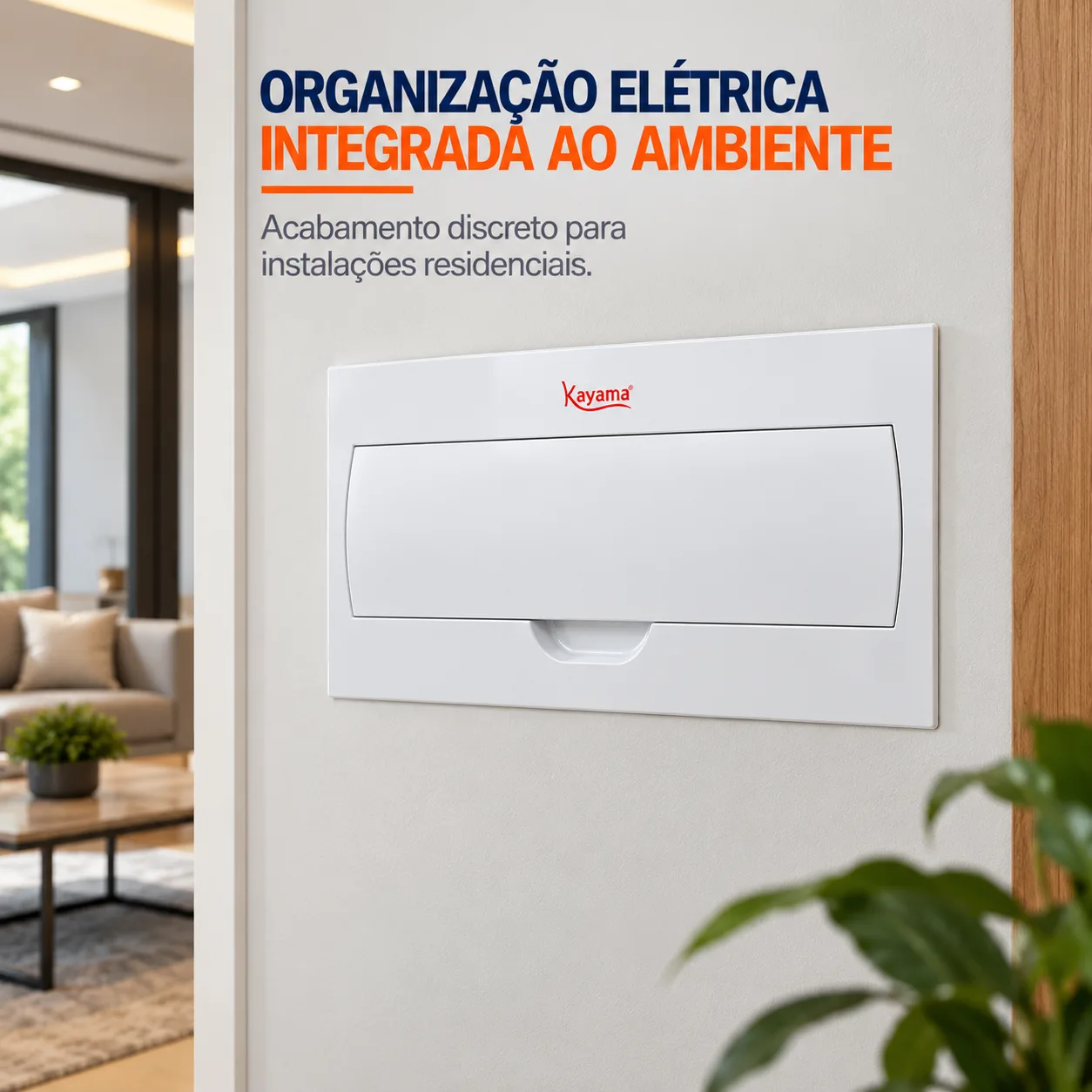

Flush-Mounted Installation
The enclosure is intended for integration into a wall or prepared mounting structure.
Circuit Organization
The distribution board provides a centralized location for electrical protection devices associated with different circuits.
Compatibility
The exact circuit breaker standard, DIN module count, maximum current and specific compatible product series were not confirmed.
Compatibility should therefore be verified before installation.
Installation and Safety
Installation should be performed by qualified personnel with the circuit de-energized.
Registration Information
- Brand: Kayama
- Model: QDE18D
- Product: Flush-mounted distribution board
- Stated capacity: 18 circuit breakers
- Installation: flush-mounted
Kayama Quality
The Kayama QDE18D Flush-Mounted Distribution Board is part of Kayama's electrical product range for organizing compatible circuit protection devices.
The Kayama QDE18D Flush-Mounted Distribution Board can be used in installations requiring organization of up to eighteen compatible protection devices.
- Residential installations — organization of electrical circuit groups.
- Commercial installations — grouping of protection devices for different circuits.
- Electrical panels — accommodation of up to eighteen compatible circuit breakers.
- Lighting circuits — organization of protection devices according to the electrical design.
- Outlet circuits — centralized organization of properly sized protective devices.
- Flush-mounted installations — suitable for walls or structures prepared for recessed installation.
- Electrical expansions — use as a secondary distribution point where specified by design.
- Indoor installations — organization of circuits with flush-mounted configuration.
- Integrated finish installations — suitable where the enclosure is intended to remain recessed.
- Circuit distribution — centralized organization of compatible protection devices.
