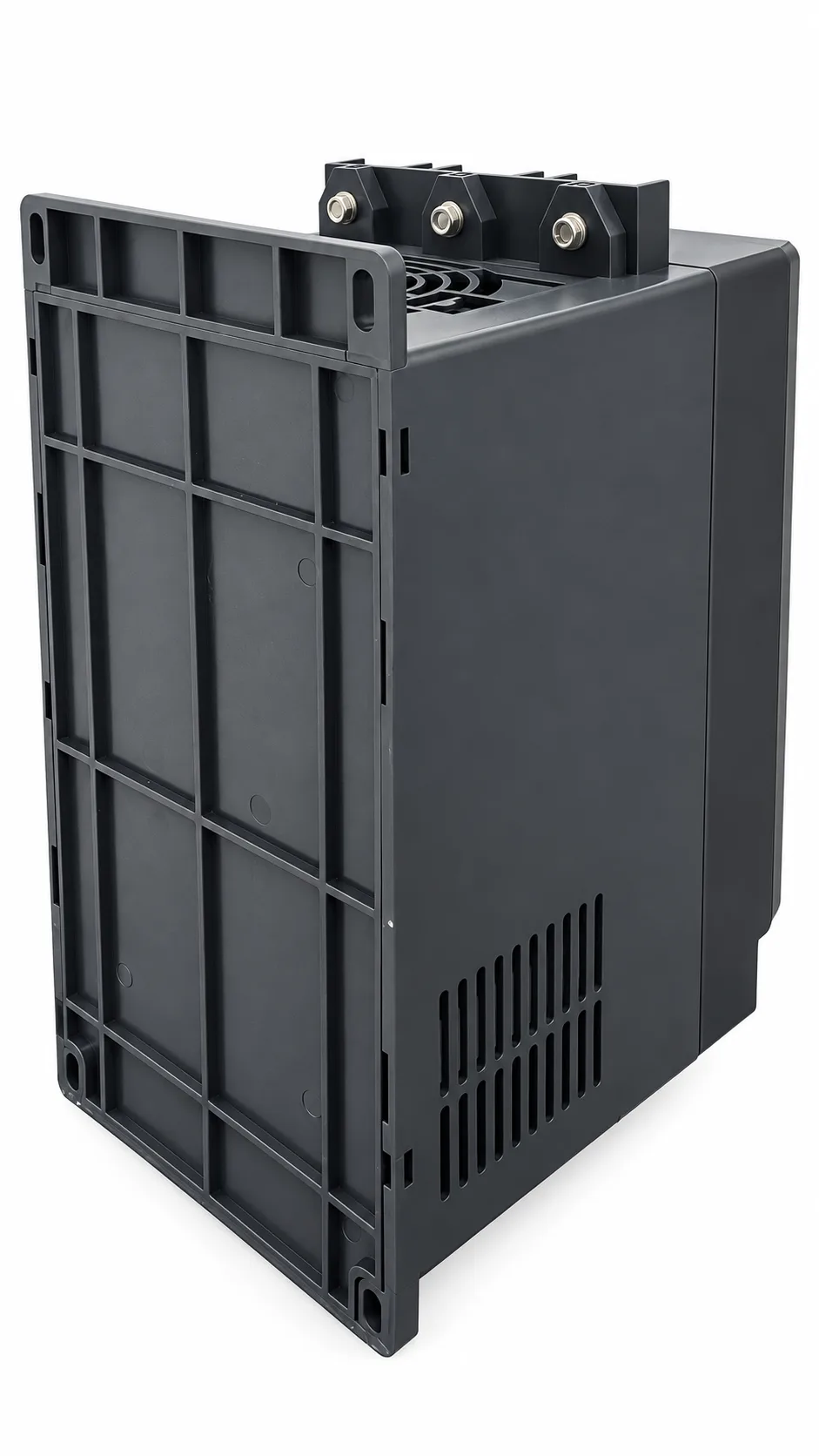

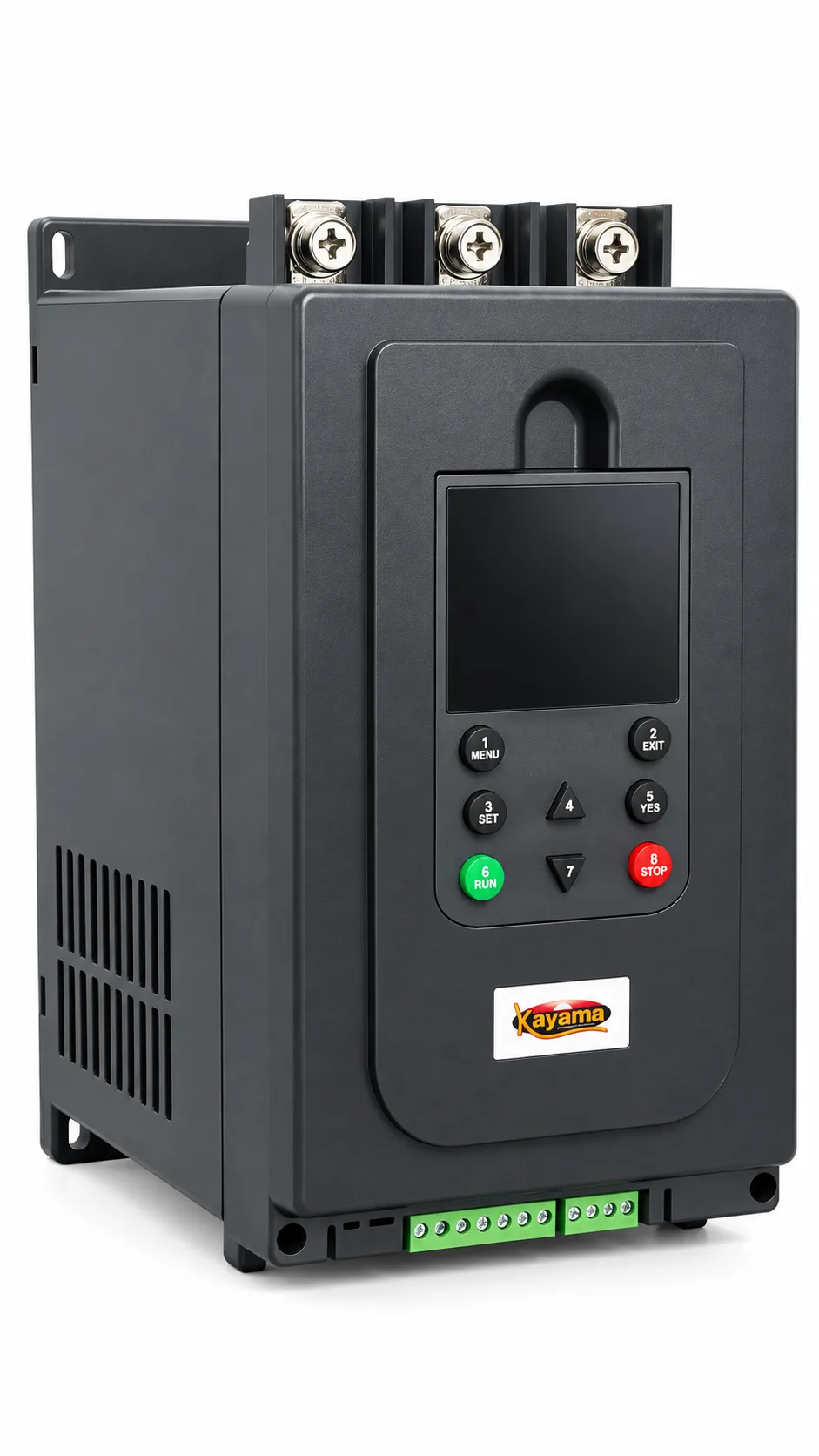

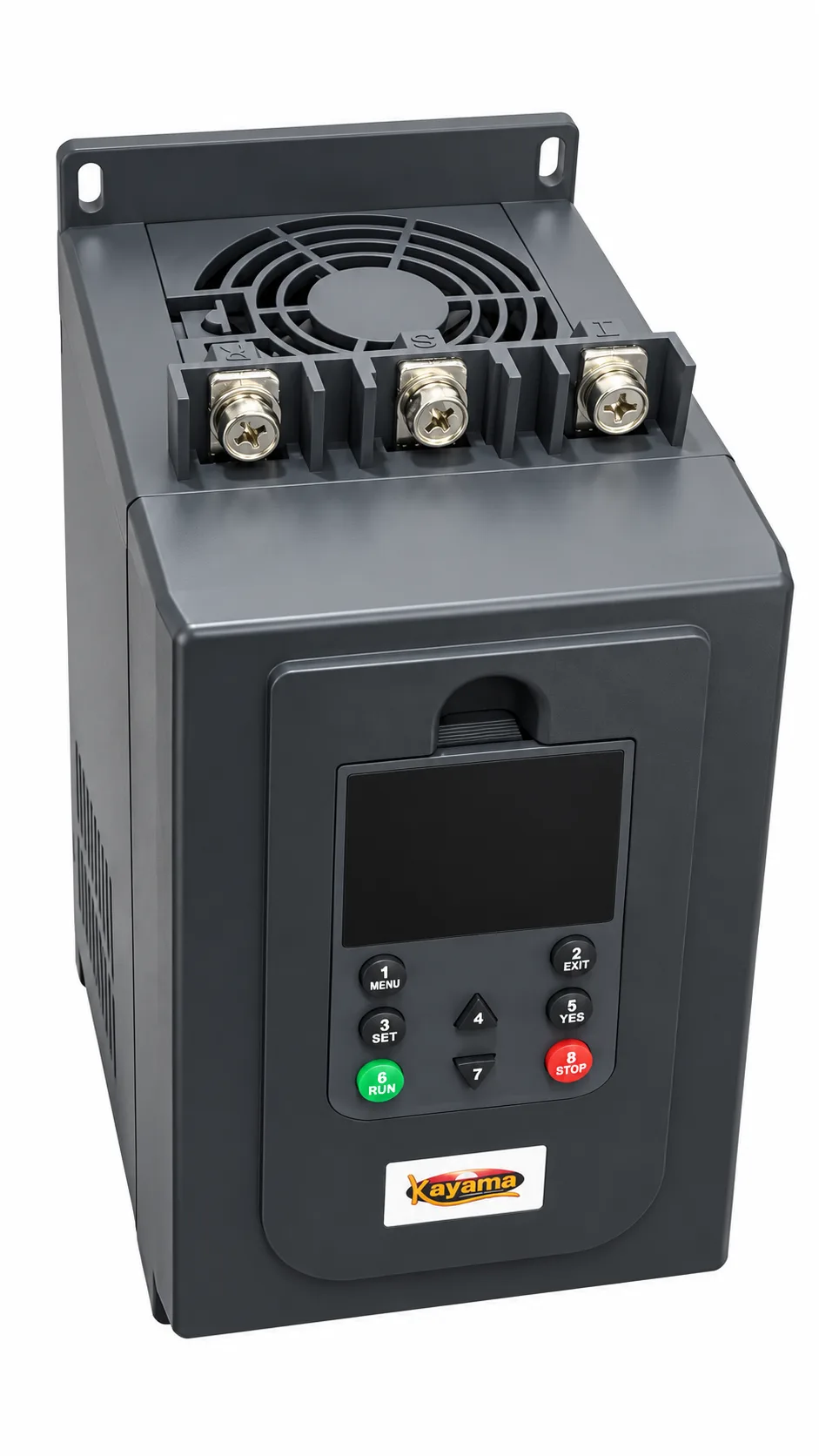

SoftStarter Digital 50 CV 380V SSD380-500 Kayama
Kayama SSD380-500 Digital Soft Starter 50 HP | 380 V | Soft Start and Stop
- SKU
- 07180035
- Category
- Soft Starter 380V
Talk to a specialist
Our team of consultants can help with specification and sizing.
Technical Description
The Kayama SSD380-500 Digital Soft Starter was developed for controlled starting and stopping of electric motors on 380 V networks, helping reduce the electrical and mechanical impacts associated with direct motor starting.
Designed for motors up to 50 HP, the unit progressively controls the voltage applied to the motor, contributing to the limitation of starting current and the reduction of mechanical stresses on components such as couplings, shafts, and driven loads.
Its digital control system allows the acceleration and deceleration ramps to be configured, providing greater control during motor starting and stopping.
Technical Features
- Product: Digital Soft Starter
- Model: SSD380-500
- Brand: Kayama
- Rated power: 50 HP
- Operating voltage: 380 V
- Control type: Digital
- Functions: soft start and stop with adjustable ramps
- Application: electric motor starting and control
Features
- Adjustable acceleration ramp
- Adjustable deceleration ramp
- Starting current limitation
- Digital interface with configurable parameters
- Compact structure for electrical panel installation
Integrated Protections
The SSD380-500 includes protection features for the motor control system, including:
- Overcurrent
- Overload
- Undervoltage
Technical Benefits
- Reduced starting current
- Reduced mechanical stress during motor starting
- Greater stability when starting and stopping loads
- Contribution to the preservation of the motor and associated components
- Reduced electrical and mechanical impacts on the system
- Suitable for applications involving frequent motor starts
Dimensions
20 × 20 × 15 cm
Installation Requirements
Installation must be carried out by a technically qualified professional, considering proper motor and load sizing, adequate ventilation inside the electrical panel, and compliance with applicable technical standards.
Registration Information
- NCM: 8504.40.50
- GTIN: 7900370026309
Commercial Information
- Product available for immediate shipment
- Fast shipping throughout Brazil
- Invoice included
- Warranty according to the manufacturer's policy
Kayama Quality
The Kayama SSD380-500 Digital Soft Starter provides a solution for controlled starting and stopping of high-power electric motors, combining digital control, adjustable ramps, and integrated protection features for industrial applications and electrical drive systems.
The Kayama SSD380-500 Digital Soft Starter can be used in systems requiring controlled starting and stopping of electric motors up to 50 HP. Main applications include:
-
Centrifugal pumps and hydraulic systems — controls pump motor starting, helping reduce the impacts associated with direct starting. -
Compressors and compressed-air systems — assists in controlling the start of the motor used to drive the compressor. -
Fans and exhaust systems — provides progressive motor starting for ventilation and exhaust equipment. -
HVAC and climate-control systems — can be used for controlled starting of motors installed in climate-control systems. -
Conveyors and material-handling systems — contributes to smoother motor starting in conveying and handling equipment. -
Industrial machinery in general — suitable for industrial systems requiring controlled motor starting and stopping.
