Inversor de Frequência Monofásico/Trifásico 10 CV 220V IFMT1030-100 Kayama
Kayama IFMT1030-100 10 HP Frequency Inverter Single-Phase 220V to Three-Phase 220V
- SKU
- 07180059
- Category
- Single/Three-phase 220V
Talk to a specialist
Our team of consultants can help with specification and sizing.

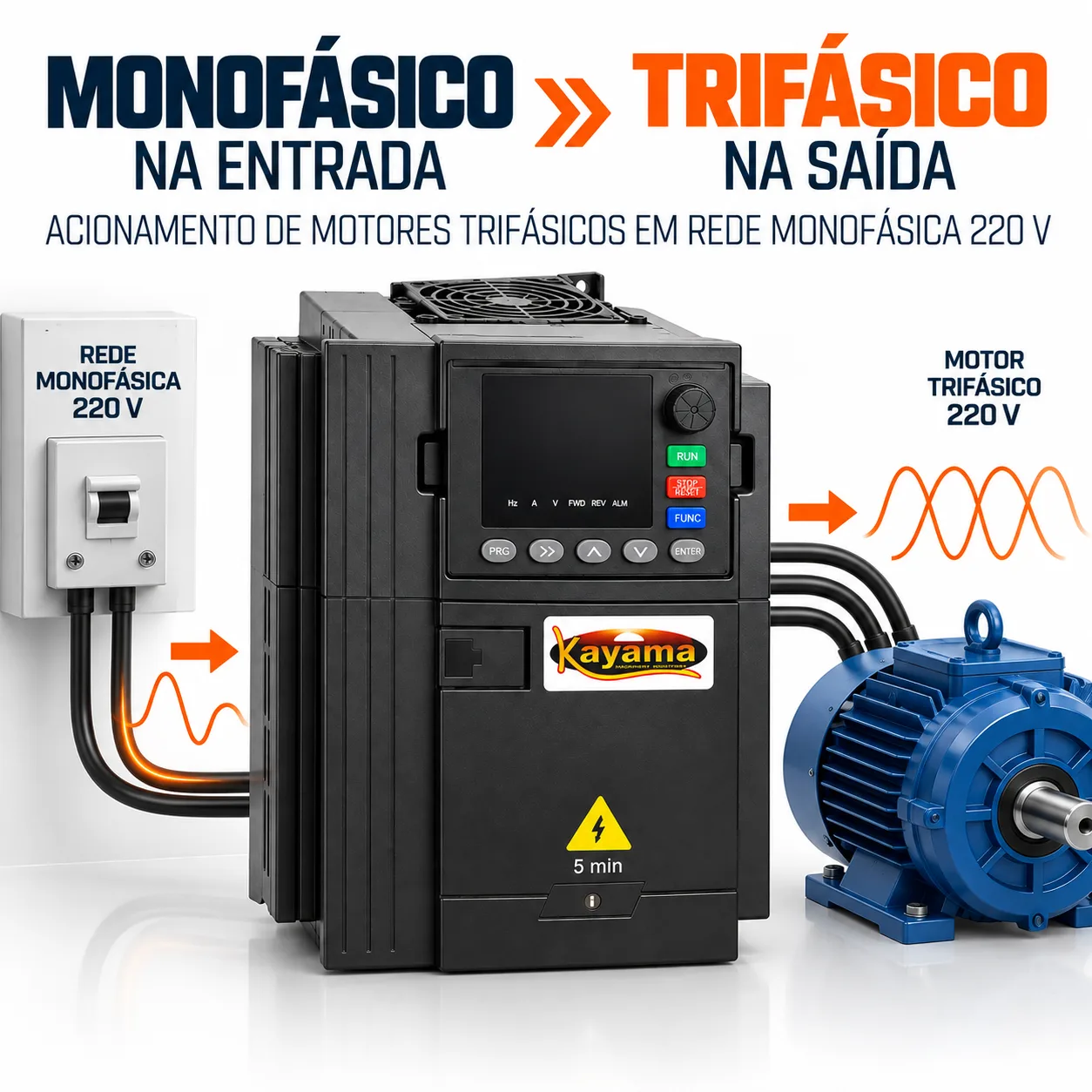

- The Kayama IFMT1030-100 Frequency Inverter was developed for applications requiring the operation and control of three-phase motors using a 220V single-phase power supply.
With a nominal power of 10 HP (7.5 kW) and 220V three-phase output, the equipment provides speed and torque control through V/F and vector control technologies, allowing parameter adjustment according to application requirements.
Its 0 to 400 Hz output-frequency range provides flexibility for motor operation control. The equipment also features a digital interface, RS485 Modbus communication, and configurable digital and analog inputs and outputs.

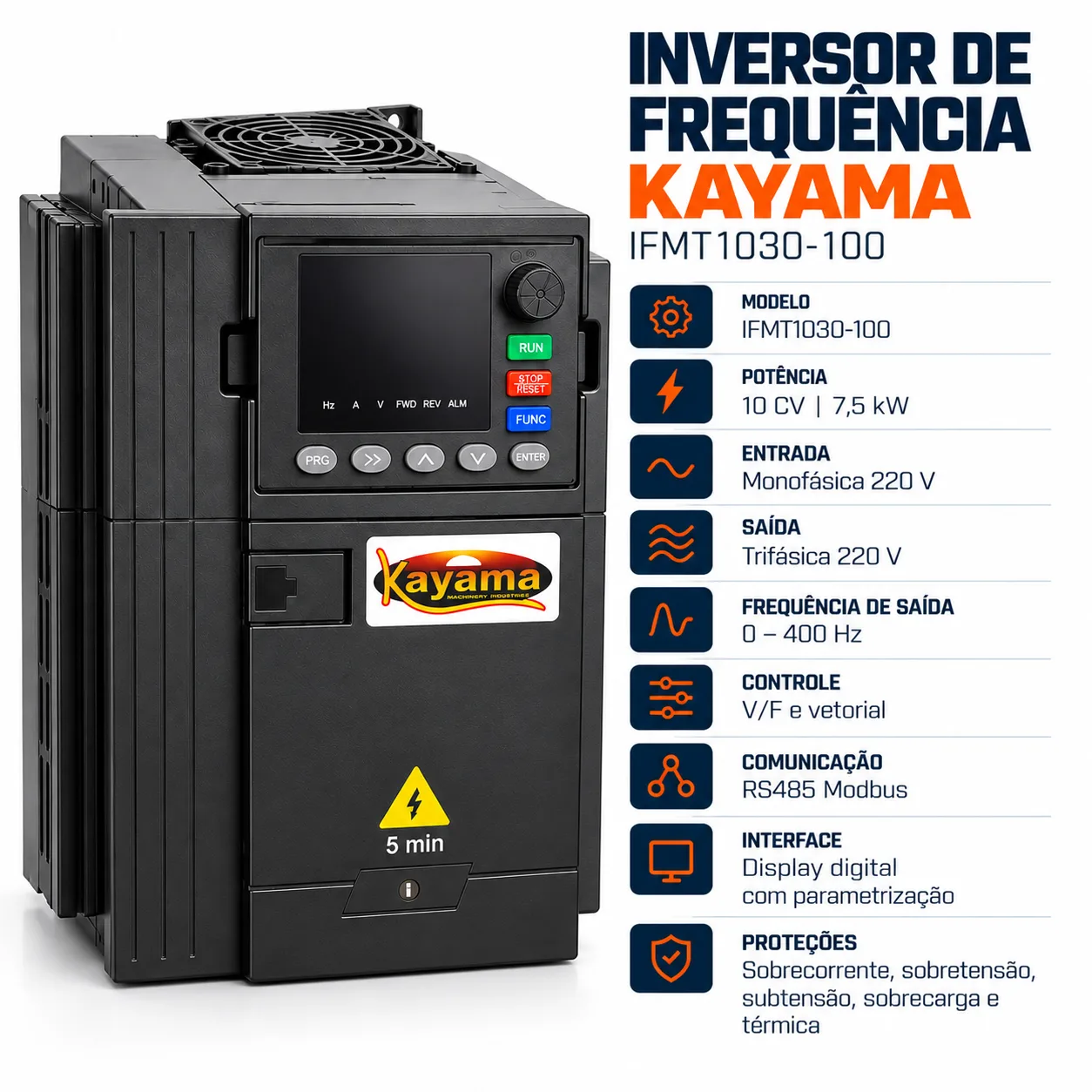

Technical Features
- Product: Frequency Inverter
- Model: IFMT1030-100
- Brand: Kayama
- Nominal power: 10 HP (7.5 kW)
- Input: Single-phase 220V
- Output: Three-phase 220V
- Output frequency: 0 to 400 Hz
- Control: V/F and vector
- Interface: Digital display with parameter adjustment
- Communication: RS485 Modbus
- Inputs and outputs: Configurable digital and analog
Technical Benefits
The IFMT1030-100 enables three-phase motors to operate in installations where a 220V single-phase power supply is available, providing flexibility for commercial and industrial applications.
Frequency control allows the motor operating speed to be adjusted, while V/F and vector control provide different parameterization options according to application requirements.
Protection Systems
The equipment includes protection and monitoring features against:
- Overcurrent
- Overvoltage
- Undervoltage
- Overload
- Overheating
- Phase failure
Dimensions
- Width: 20 cm
- Height: 20 cm
- Depth: 15 cm
Installation and Use
Installation must be performed by a qualified professional, verifying compatibility between the inverter and motor.
Parameter settings must consider the load and application requirements. Correct electrical sizing must also be ensured and applicable technical standards must be followed.
Registration Information
- GTIN: 7900370026088
- NCM: 8504.40.50
Hydraulic pumps: allows speed control of motors used in pumping systems according to application requirements.
Compressors: suitable for controlling motors used in compression systems.
Industrial machinery: suitable for machines using three-phase motors that require controlled operation.
Conveyor systems: enables speed control of motors used in material-handling systems.
Fans and exhausters: allows adjustment of motor speed in ventilation and exhaust systems.
Industrial automation systems: can be integrated into applications requiring parameterization and RS485 Modbus communication.
Small and medium-sized industries: suitable for installations using three-phase motors where a 220V single-phase power supply is available.
