Frequency Inverter Single-Phase/Three-Phase 15 HP 220V IFMT1030-150 Kayama

1. The Kayama IFMT1030-150 Frequency Inverter was developed for the operation and control of three-phase motors up to 15 HP, using a 220V single-phase input and providing a 220V three-phase output.

The equipment combines V/F (scalar) and vector control, allowing operating parameters to be adjusted according to the characteristics of the motor and application. Its 0–400 Hz output frequency range provides flexibility for different motor speed control requirements.

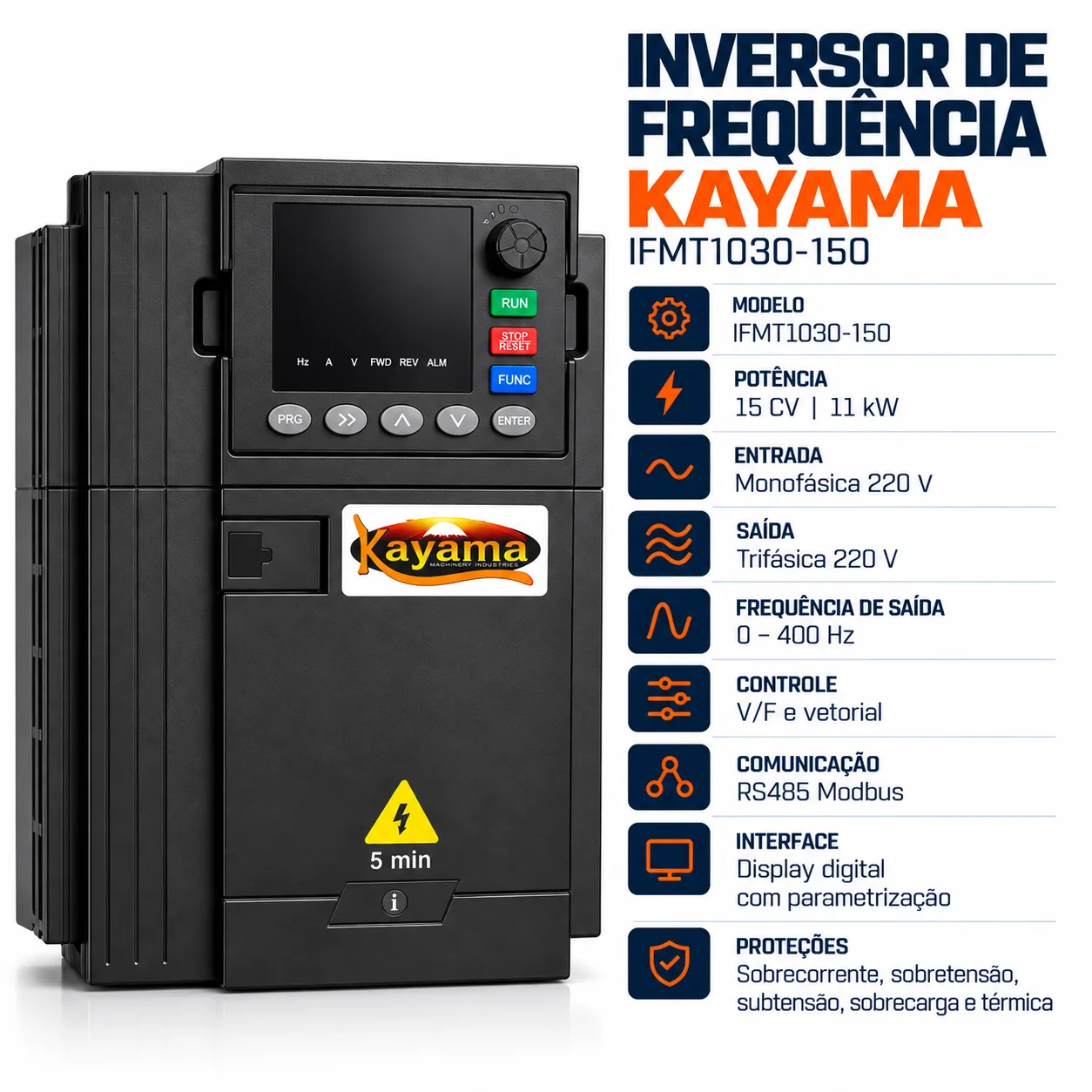

Technical Features

• Product: Frequency Inverter
• Brand: Kayama
• Model: IFMT1030-150
• Rated power: 15 HP (11 kW)
• Input: 220V single-phase
• Output: 220V three-phase
• Output frequency: 0–400 Hz
• Control: V/F and vector
• Interface: Digital display/control panel for parameter setting
• Communication: RS485 Modbus
• Inputs and outputs: Configurable digital and analog I/O

Technical Resources and Benefits

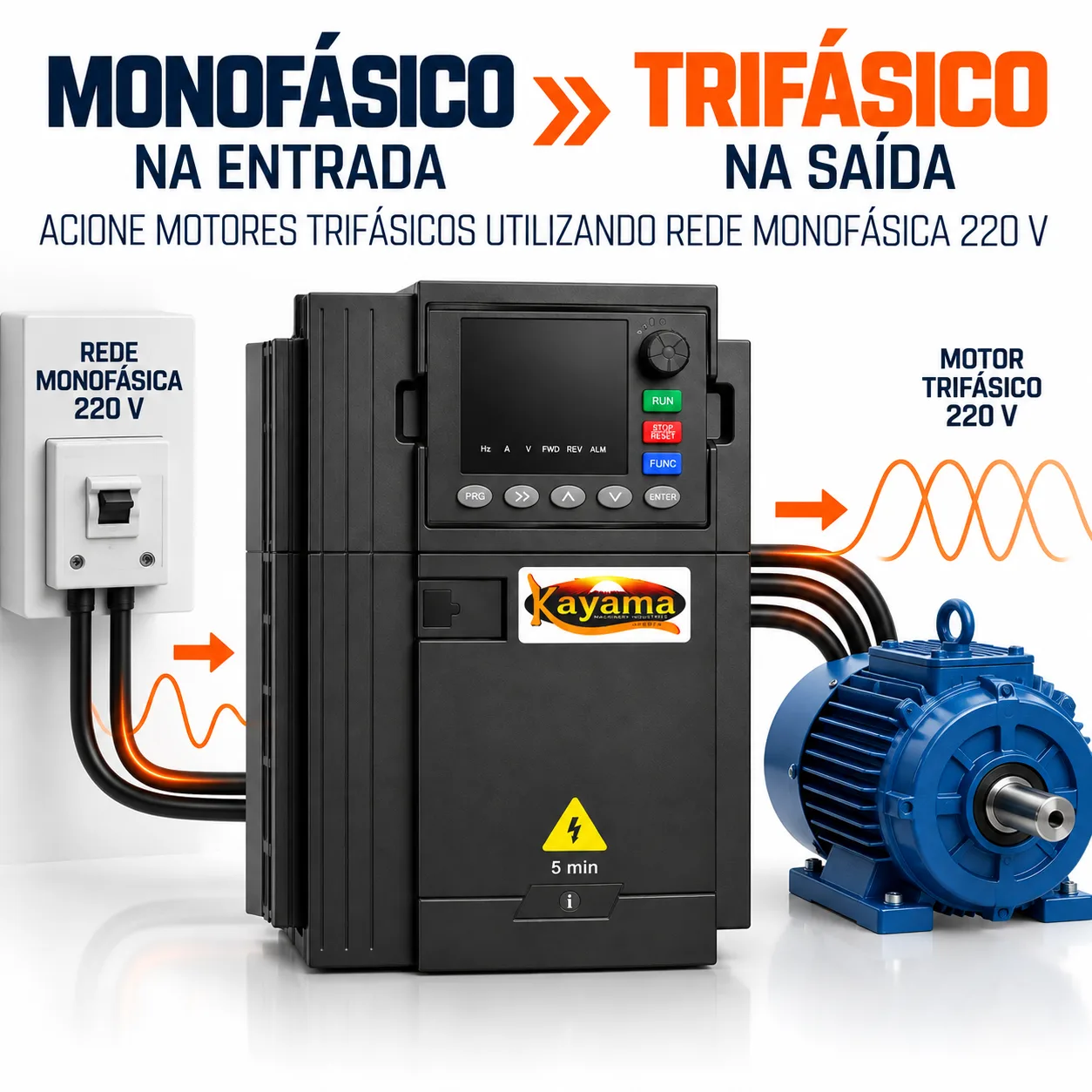

The IFMT1030-150 allows three-phase motors to be operated from a 220V single-phase power supply, providing an option for installations where a dedicated three-phase power supply is not available.

Its features include:

• Motor speed control;
• Torque control according to parameterization and application;
• Controlled starting, helping reduce current peaks;
• Reduction of mechanical stress during motor starting;
• Integration with automation systems;
• RS485 Modbus communication;
• Configurable inputs and outputs for different control systems.

Protection Systems

The equipment includes protection and monitoring resources for system operation, including:

• Overcurrent protection;
• Overvoltage protection;
• Undervoltage protection;
• Overload protection;
• Thermal protection against overheating;
• Phase-failure monitoring.

Installation and Use Requirements

Installation must be performed by a qualified professional, following appropriate electrical sizing and applicable technical standards.

Before operation, compatibility between the inverter and motor must be verified, considering voltage, power, current, load characteristics, and other electrical parameters. Parameterization must be performed according to the motor and application.

Dimensions

20 × 20 × 15 cm.

Registration Information

• GTIN: 7900370026095
• NCM: 8504.40.50

Kayama Quality

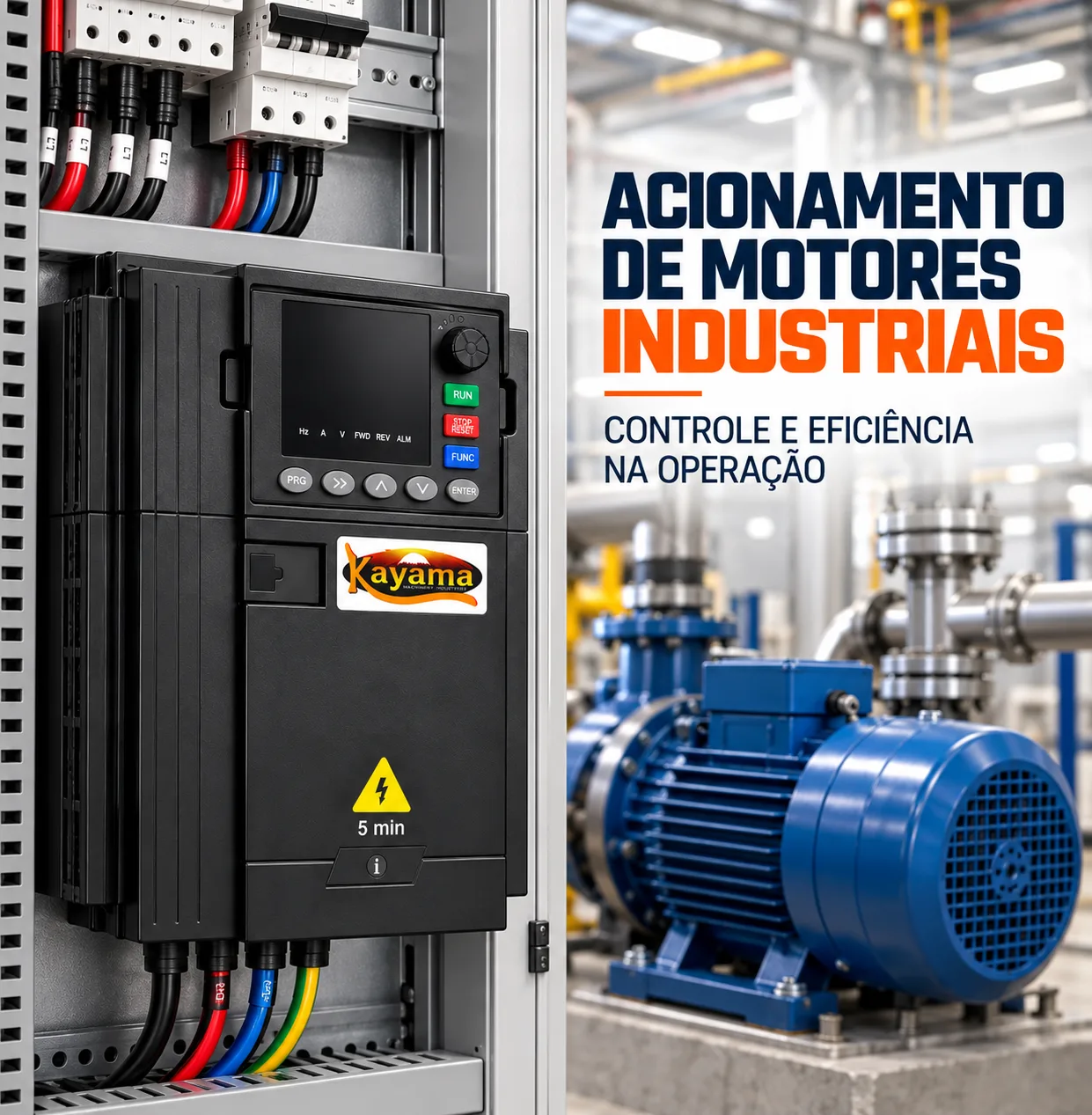

The Kayama IFMT1030-150 Frequency Inverter is designed for applications requiring three-phase motor control, providing parameterization, communication, and protection resources for integration into commercial, industrial, and automation systems.
