Inversor de Frequência Monofásico/Trifásico 3 CV 220V IFMT1030-30 Kayama

1. The Kayama IFMT1030-30 Frequency Inverter was developed for the operation and control of 3 HP three-phase motors, using a 220V single-phase input and providing a 220V three-phase output.

Compact and versatile, the equipment combines V/F (scalar) and vector control, allowing parameter adjustment according to the motor and application characteristics. Its 0–400 Hz output frequency range provides flexibility for different motor speed control requirements.

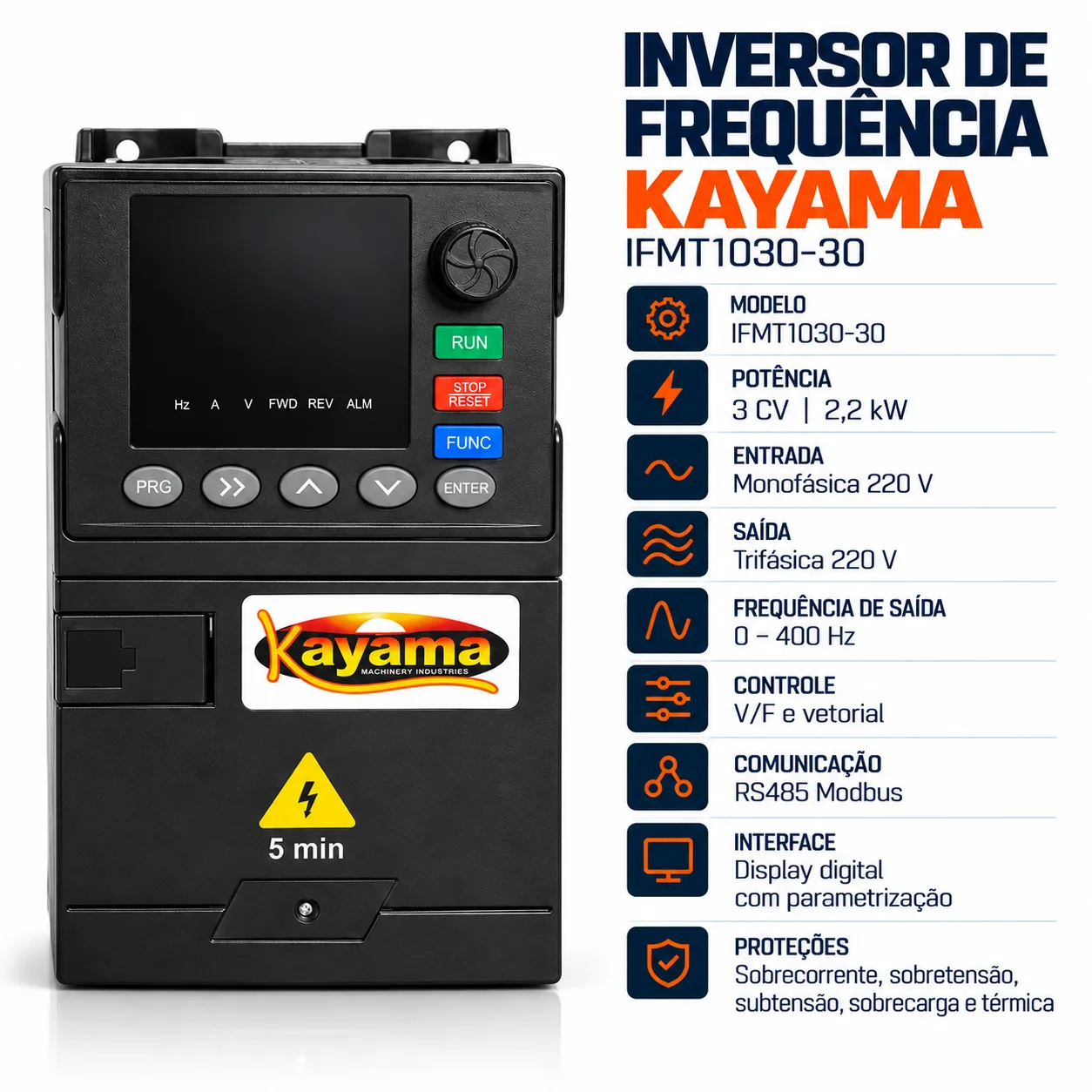

Technical Features

• Product: Frequency Inverter
• Brand: Kayama
• Model: IFMT1030-30
• Rated power: 3 HP (2.2 kW)
• Input: 220V single-phase
• Output: 220V three-phase
• Output frequency: 0–400 Hz
• Control: V/F and vector
• Interface: Digital display/control panel for parameter setting
• Communication: RS485 Modbus
• Inputs and outputs: Configurable digital and analog I/O

Technical Resources and Benefits

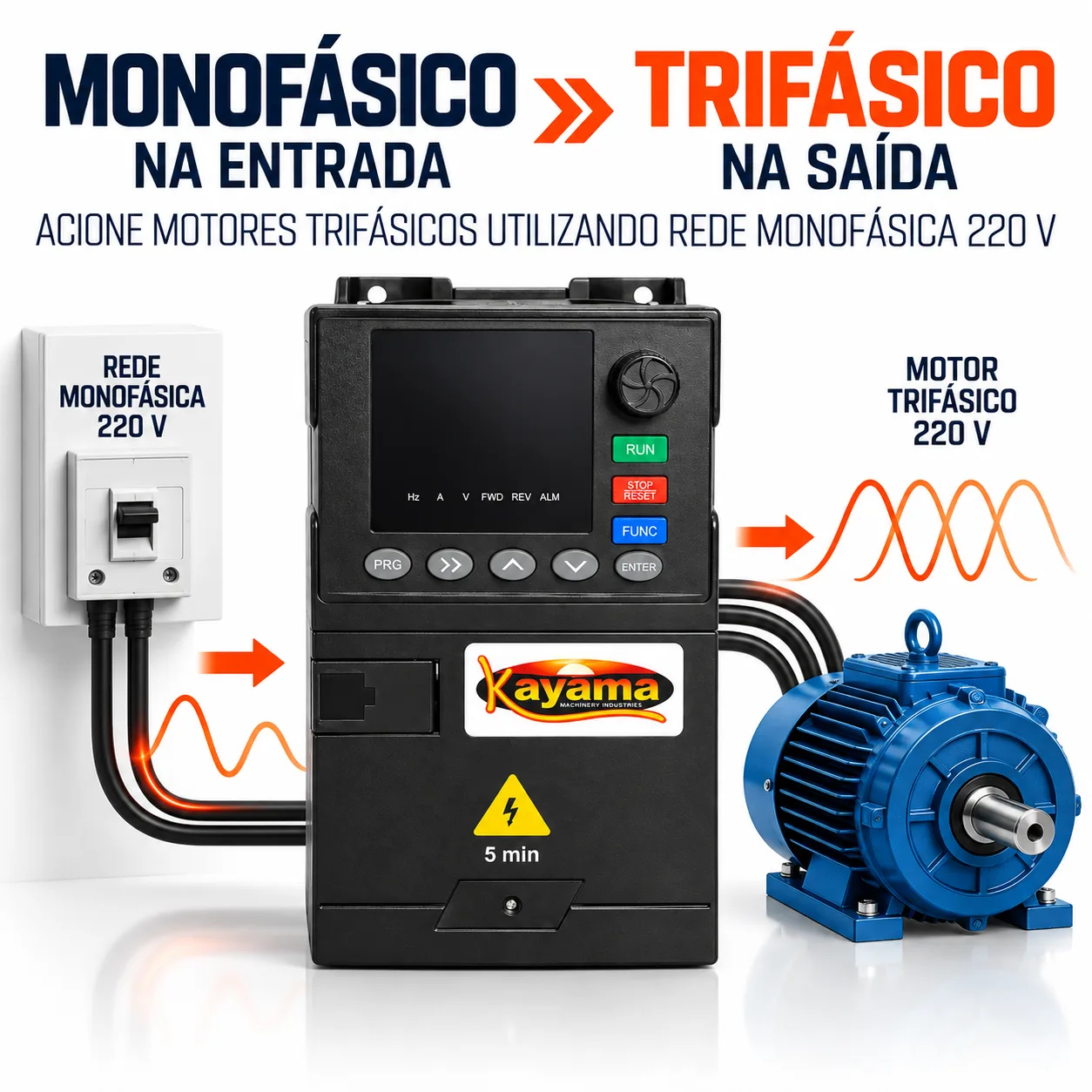

The IFMT1030-30 allows three-phase motors to be operated using a 220V single-phase power supply, providing flexibility for installations without a dedicated three-phase power supply.

Its features include:

• Motor speed control;
• Torque control according to parameterization and application;
• Controlled starting, helping reduce current peaks;
• Reduction of mechanical stress during motor starting;
• Integration with automation systems;
• RS485 Modbus communication;
• Configurable digital and analog inputs and outputs;
• Protection resources for monitoring operating conditions.

Protection Systems

The equipment includes protection and monitoring resources, including:

• Overcurrent protection;
• Overvoltage protection;
• Undervoltage protection;
• Overload protection;
• Thermal protection against overheating;
• Phase-failure monitoring.

Installation and Use Requirements

Installation must be performed by a qualified professional, following appropriate electrical sizing and applicable technical standards.

Before operation, compatibility between the inverter and motor must be verified, considering voltage, power, current, load characteristics, and other electrical parameters. Parameterization must be performed according to the motor and application.

Dimensions

20 × 20 × 15 cm.

Registration Information

• GTIN: 7900370025562
• NCM: 8504.40.50

Kayama Quality

The Kayama IFMT1030-30 Frequency Inverter provides resources for three-phase motor control in installations with 220V single-phase power, making it suitable for commercial, light industrial, and automation applications compatible with its specifications.
