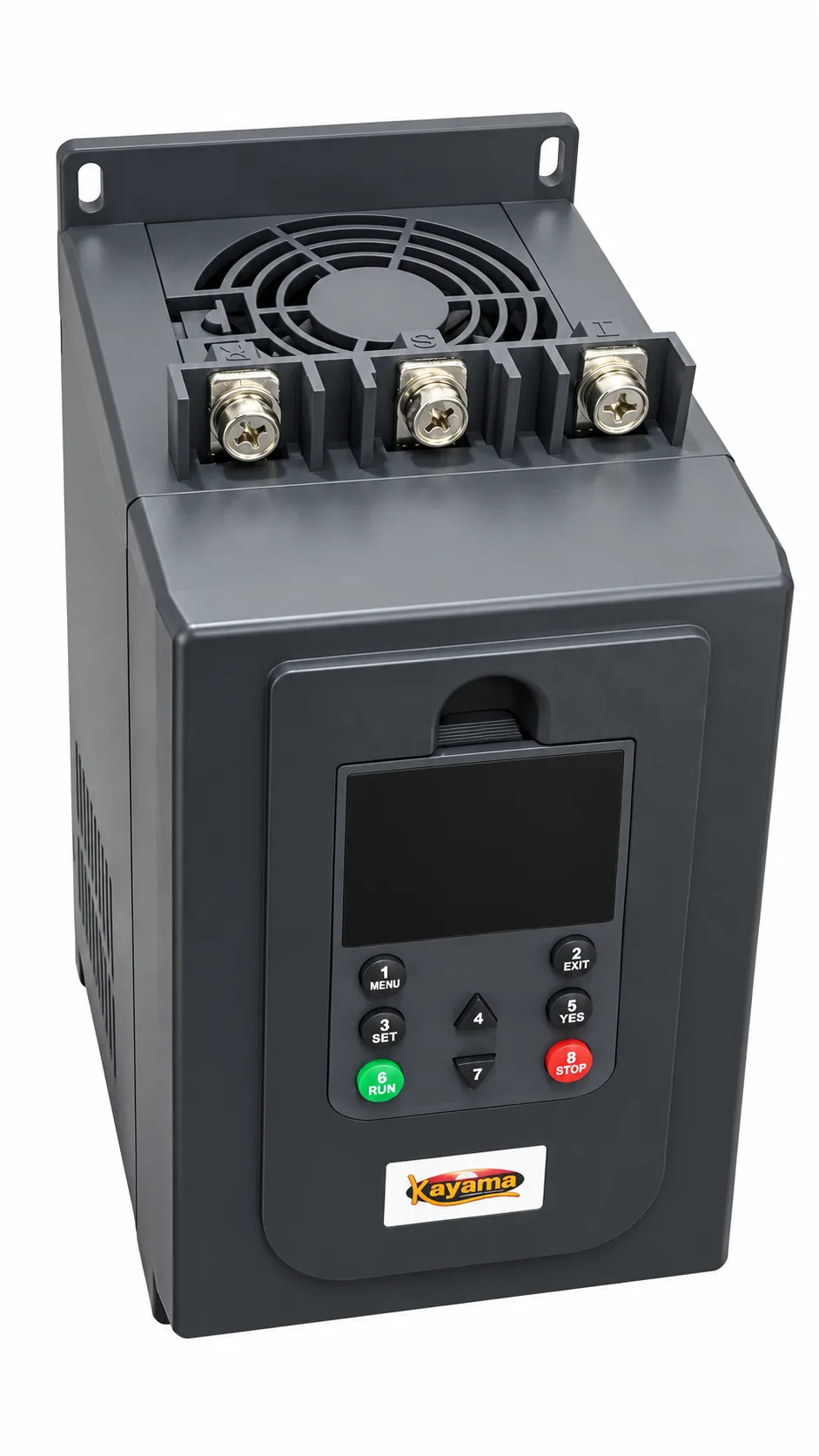

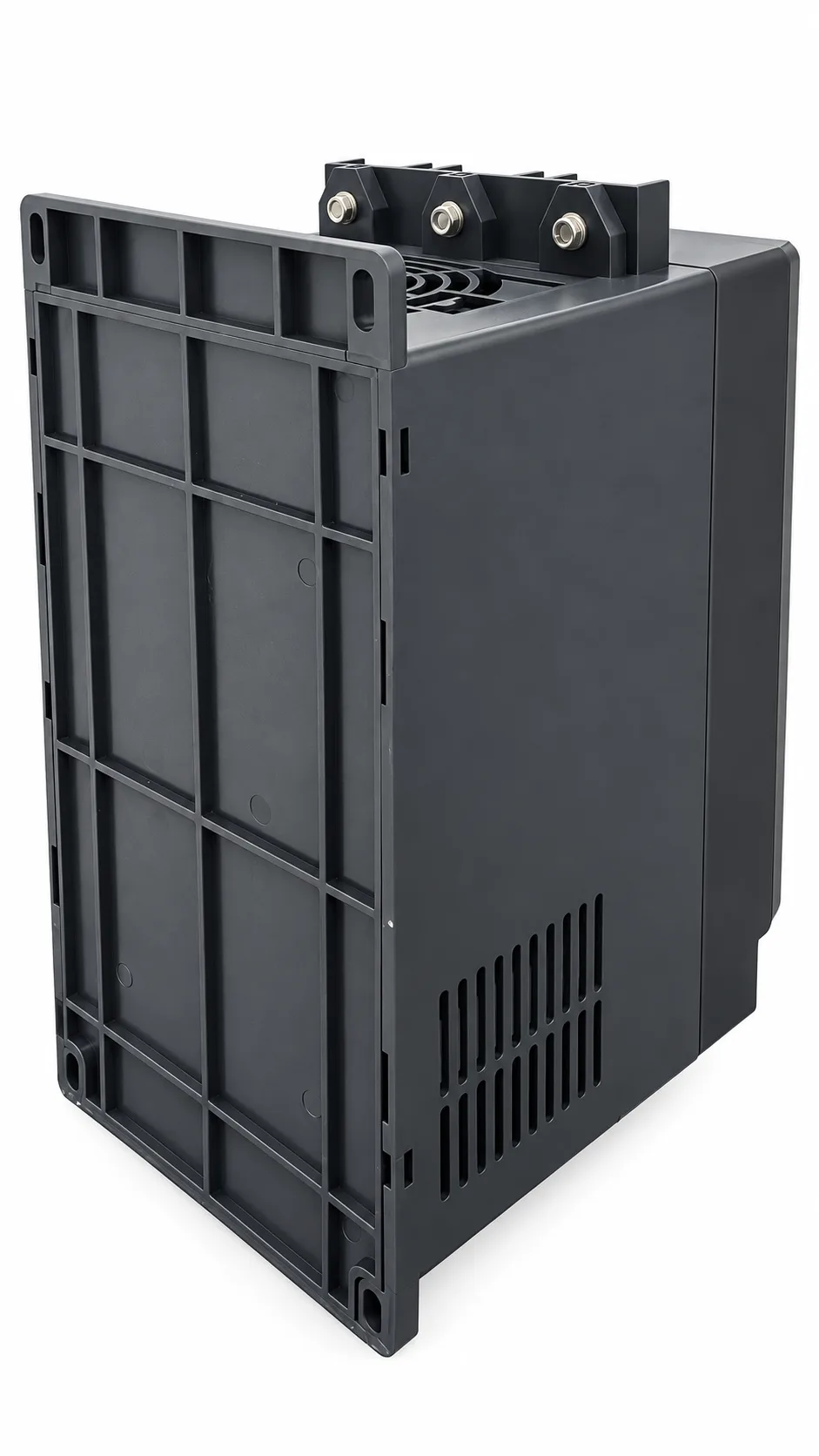

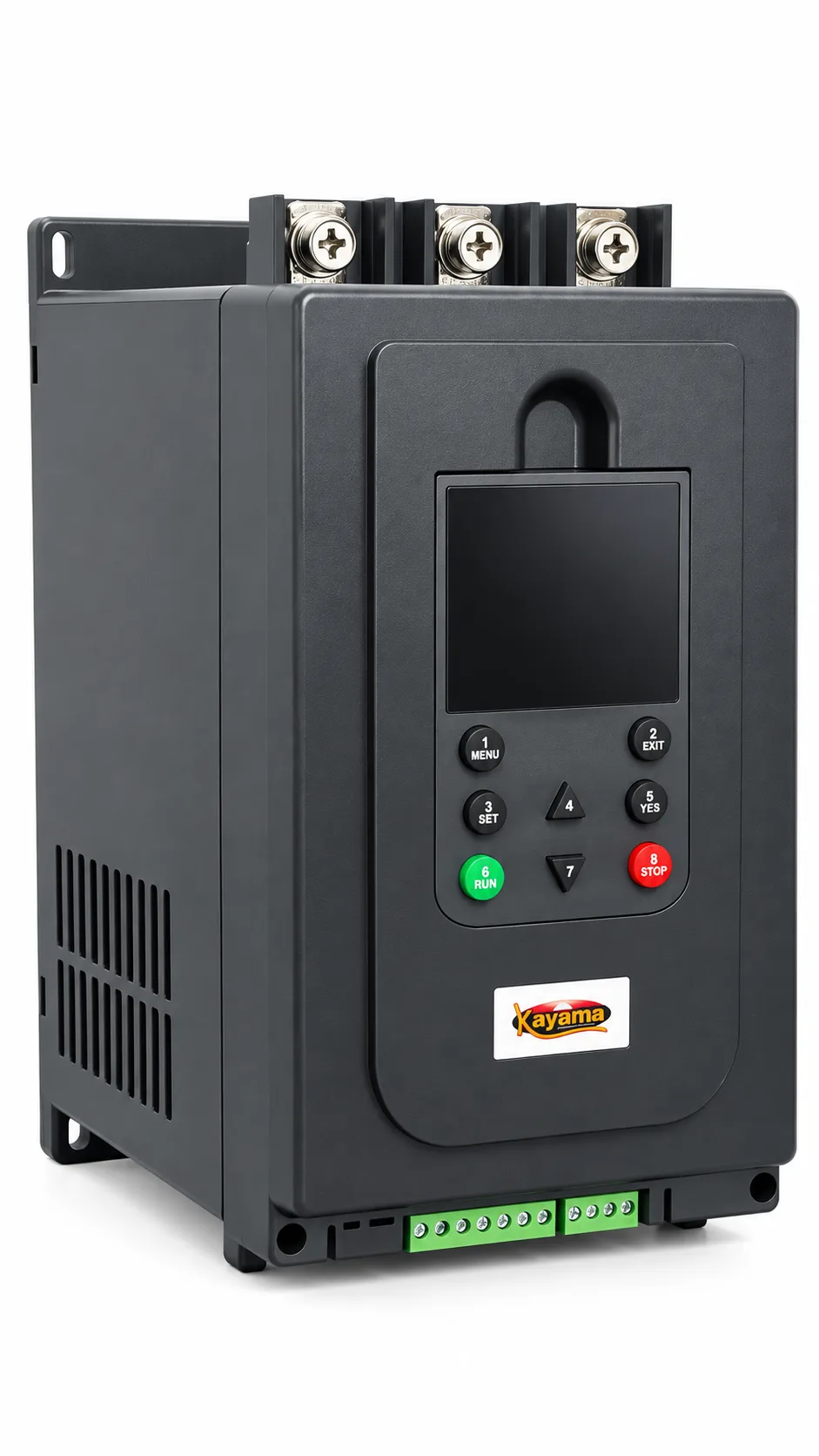

SoftStarter Digital 25 CV 220V SSD220-250 Kayama

1. The Kayama SSD220-250 Digital Soft Starter is designed for controlled operation of electric motors with a rated power of up to 25 HP at 220V. The equipment progressively controls the voltage applied to the motor during starting and stopping, helping to reduce electrical and mechanical impacts on the system.

Technical Features

• Product: Digital Soft Starter
• Brand: Kayama
• Model: SSD220-250
• Rated power: 25 HP
• Operating voltage: 220V
• Control type: Digital
• Adjustable acceleration ramp
• Adjustable deceleration ramp
• Starting current limitation
• Digital interface with configurable parameters
• Compact structure for electrical panels

Integrated Protections

The SSD220-250 includes protection against:

• Overcurrent
• Overload
• Undervoltage

These features assist in protecting the system during operation and controlling motor starting conditions.

Operation

The SSD220-250 Soft Starter allows the motor to start progressively, avoiding abrupt activation. Acceleration and deceleration ramps can be digitally configured according to the characteristics of the application.

Starting current limitation assists in controlling the motor's electrical behavior during startup, while smooth starting and stopping help minimize mechanical stress on couplings, shafts, and driven loads.

Technical Benefits

• Reduced motor starting current;
• Reduced mechanical stress during starting and stopping;
• Greater stability when driving loads;
• Configurable acceleration and deceleration ramps;
• System protection assistance through integrated protection functions;
• Suitable for applications involving frequent motor starts.

Technical Specifications

• Model: SSD220-250
• Rated power: 25 HP
• Operating voltage: 220V
• Control: Digital
• Functions: Smooth starting and stopping with adjustable ramps
• Protections: Overcurrent, overload, and undervoltage
• Application: Electric motor starting and control

Dimensions

• Width: 20 cm
• Height: 20 cm
• Depth: 15 cm

Installation Requirements

Installation must be performed by a qualified professional, considering proper motor and load sizing, adequate electrical panel ventilation, and applicable technical standards.

Commercial Information

• Ready for immediate delivery;
• Fast shipping throughout Brazil;
• Invoice included;
• Warranty according to the manufacturer's policy.

Registration Information

• Brand: Kayama
• Model: SSD220-250
• GTIN/EAN: 7900370025708
• NCM: 8504.40.50

Kayama Quality

The Kayama SSD220-250 combines digital control, smooth starting and stopping, and integrated protections in a compact solution for electric motor starting applications in industrial installations and automation panels.
