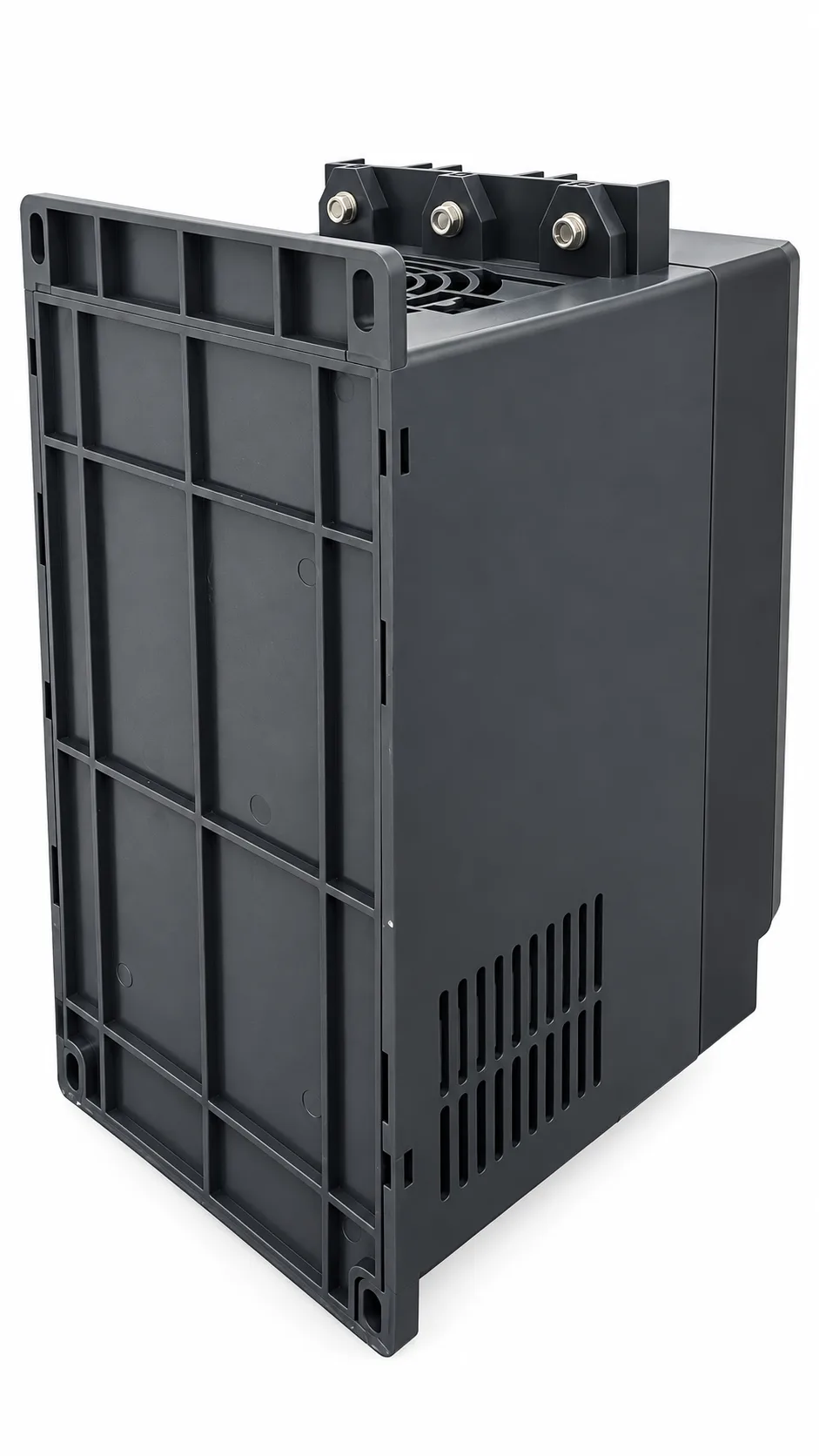

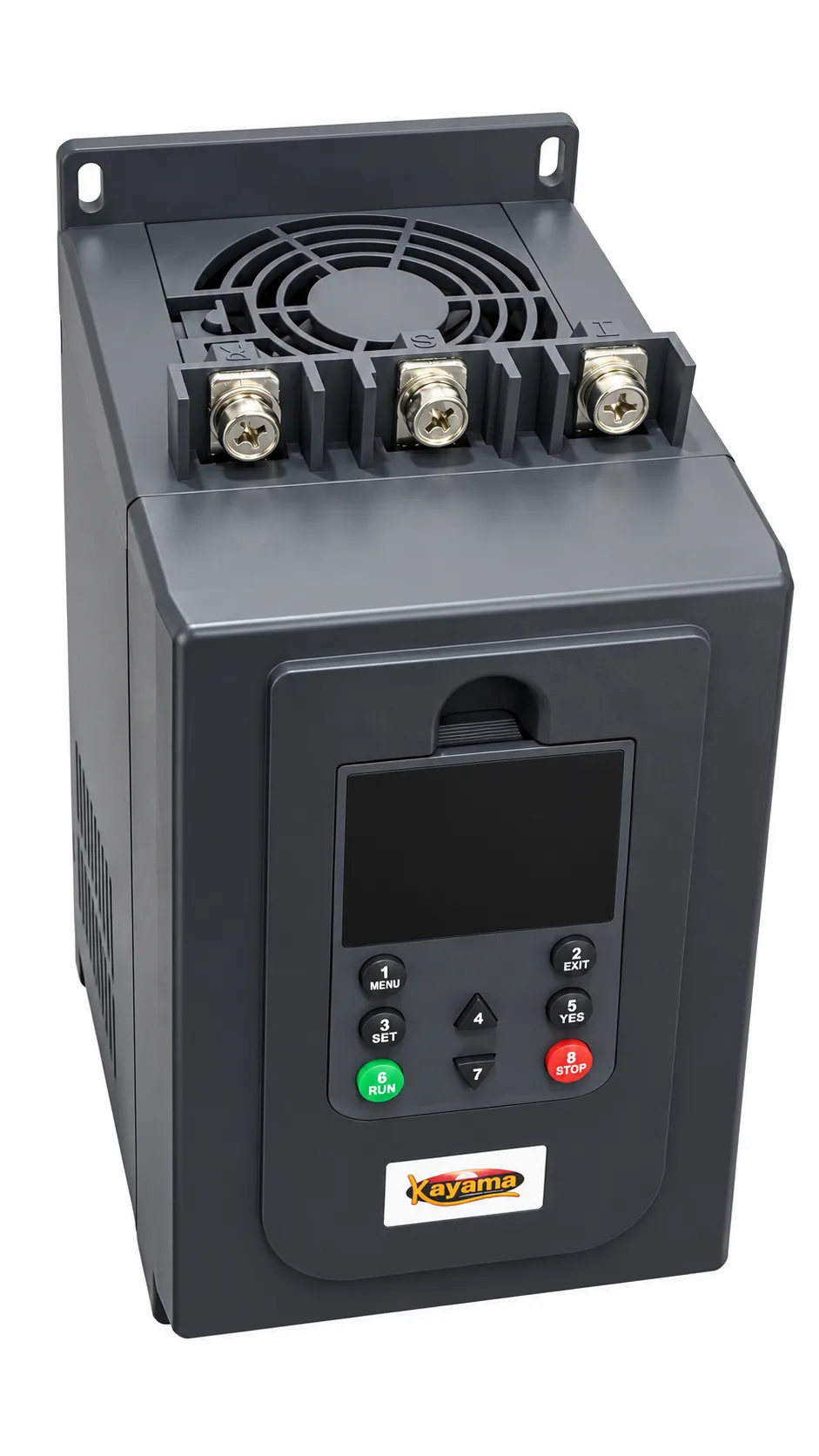

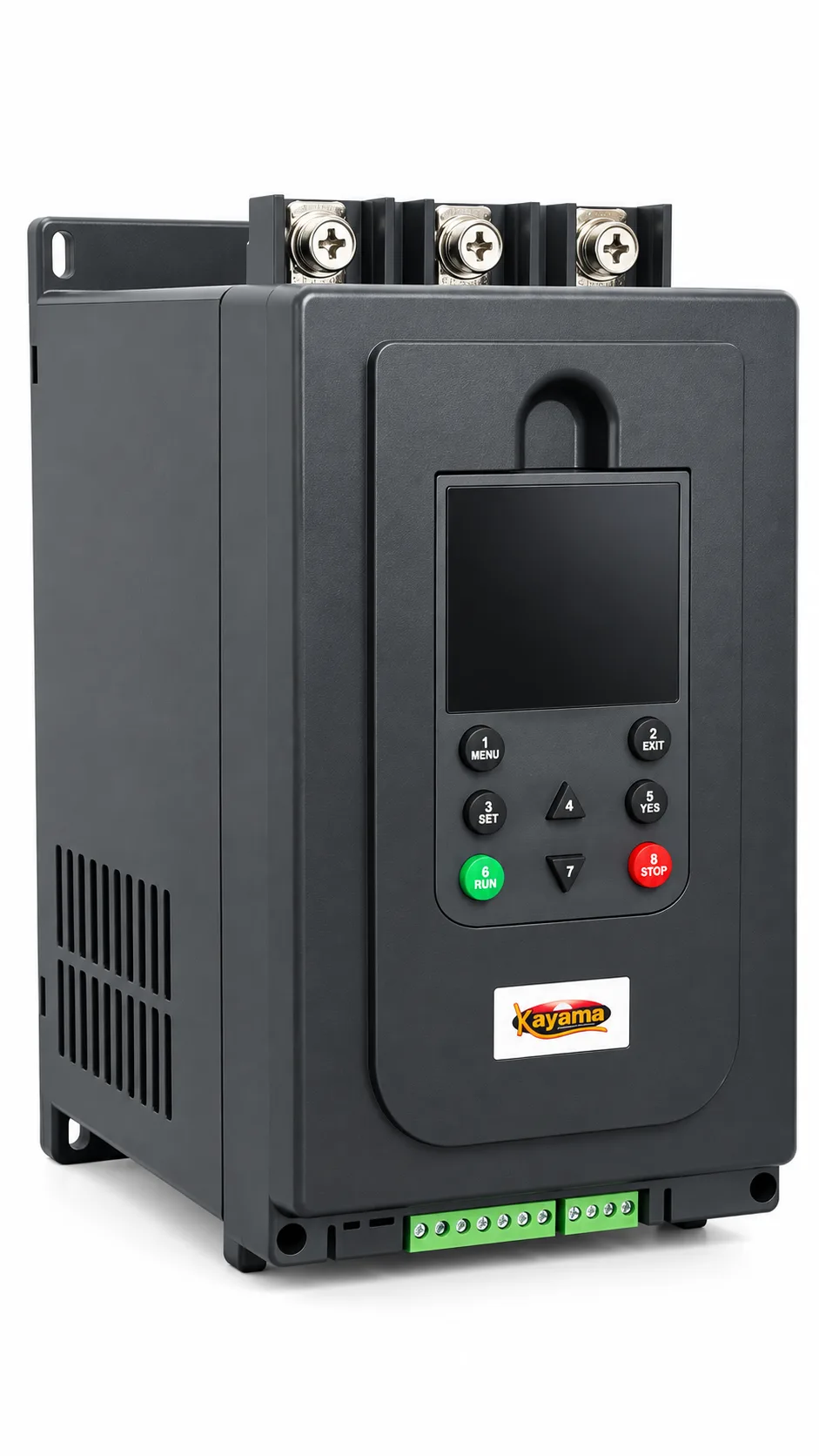

SoftStarter Digital 30 CV 380V SSD380-300 Kayama
Kayama SSD380-300 Digital Soft Starter 30 HP | 380 V | Soft Start and Stop
- SKU
- 07180033
- Category
- Soft Starter 380V
Talk to a specialist
Our team of consultants can help with specification and sizing.
Technical Description
The Kayama SSD380-300 Digital Soft Starter was developed for controlled starting and stopping of electric motors on 380 V networks, providing smooth operation and helping reduce the electrical and mechanical impacts associated with direct starting.
Designed for motors up to 30 HP, the unit progressively controls the voltage applied to the motor, helping limit starting current and reduce mechanical stress on components such as couplings, shafts, and driven loads.
Its digital control system allows acceleration and deceleration ramps to be configured, providing greater control during motor starting and stopping.
Technical Features
- Product: Digital Soft Starter
- Model: SSD380-300
- Brand: Kayama
- Rated power: 30 HP
- Operating voltage: 380 V
- Control type: Digital
- Functions: soft start and stop with adjustable ramps
- Application: three-phase electric motor control
- Structure: compact design for electrical panel installation
Features
- Adjustable acceleration ramp
- Adjustable deceleration ramp
- Starting current limitation
- Digital interface with configurable parameters
- Compact structure for electrical panels
Integrated Protections
The SSD380-300 includes protection features for the motor control system, including:
- Overcurrent
- Overload
- Undervoltage
Technical Benefits
- Reduced motor starting current
- Reduced mechanical stress on the system
- Contribution to the preservation of the motor and associated components
- Greater stability when starting loads
- Reduced electrical and mechanical impacts on the system
- Improved performance in applications involving frequent starts
Dimensions
20 × 20 × 15 cm
Installation Requirements
Installation must be carried out by a technically qualified professional, considering:
- Proper motor and load sizing
- Motor compatibility with 380 V
- Adequate ventilation inside the electrical panel
- Compliance with applicable technical standards
Soft starter selection should consider not only the motor's power, but also its electrical characteristics and load conditions.
Registration Information
- NCM: 8504.40.50
- GTIN: 7900370026286
Commercial Information
- Product available for immediate shipment
- Fast shipping throughout Brazil
- Invoice included
- Warranty according to the manufacturer's policy
Kayama Quality
The Kayama SSD380-300 Digital Soft Starter provides a solution for controlled starting and stopping of electric motors up to 30 HP at 380 V, combining digital control, adjustable ramps, starting current limitation, and integrated protection features for industrial applications.
The Kayama SSD380-300 Digital Soft Starter can be used in systems requiring controlled starting and stopping of electric motors up to 30 HP at 380 V. Main applications include:
-
Centrifugal pumps and hydraulic systems — assists with progressive pump motor starting, helping reduce the impacts associated with direct starting. -
Compressors and compressed-air systems — allows controlled starting of the motor used to drive the compressor. -
Fans and exhaust systems — provides progressive starting for ventilation and exhaust equipment driven by electric motors. -
HVAC and climate-control systems — can be used for controlled starting of motors installed in climate-control systems. -
Conveyors and material-handling systems — contributes to smoother motor starting in conveying and handling equipment. -
Industrial machinery in general — suitable for systems requiring greater control during motor starting and stopping.
