Multifunctional dual cyclic relay - KRCDM09 - 220V 50/60 Hz - Kayama

Technical Description

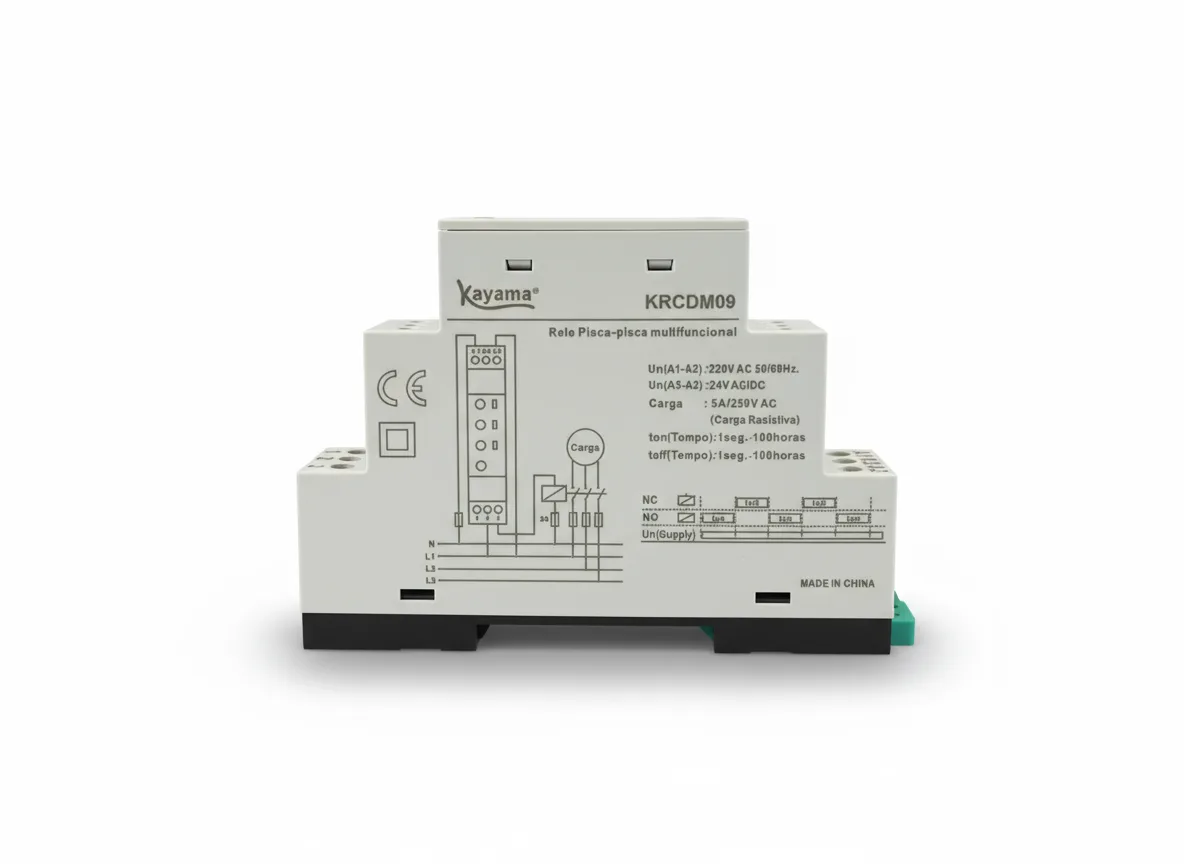

The Kayama KRCDM09 Dual Cycle Multifunction Timer Relay is an electronic device designed for timing, control and automation of repetitive processes in electrical panels and control systems.

With a 220 VAC 50/60 Hz power supply, the unit provides timed and cyclic functions according to the features available for the model, allowing automatic control of loads or control signals at predefined intervals.

Its dual cycle configuration, with two channels, expands its use in sequences and processes requiring timed control.

Technical Characteristics

• Brand: Kayama
• Model: KRCDM09
• Type: Dual cycle multifunction timer relay
• Supply voltage: 220 VAC
• Frequency: 50/60 Hz
• Stated number of channels: 2
• Stated current: up to 10 A
• Stated accuracy: ±2%

Operation

The KRCDM09 is intended for controlling electrical events that depend on time. It can incorporate timing and cyclic operation functions into control and automation circuits.

The actual configuration of functions, available timing ranges and interaction between channels must follow the equipment's functional diagram and specific instructions.

Output Performance and Use

The stated current for the product is up to 10 A. The actual permissible capacity must be evaluated according to the type and characteristics of the connected load.

Resistive and inductive loads, contactor coils, solenoids, motors, lighting systems and electronic loads may have different electrical characteristics, particularly regarding starting current.

For higher-power loads or loads with high starting currents, the relay can be used in the control circuit to operate a properly rated contactor or intermediate relay.

Panel Integration

The KRCDM09 can be integrated into automation systems and electrical panels provided that control voltage, load current, protection devices and the characteristics of the controlled equipment are properly considered.

In motor and pump applications, the product should be part of the control logic and should not replace dedicated motor protection devices.

Installation and Safety

Installation should be performed by a qualified professional according to the electrical design and applicable technical standards.

Before energizing the equipment, check:

• supply voltage;
• load characteristics;
• circuit current;
• protection devices;
• electrical connections;
• operating logic and sequence.

This product is an automation and timing device and should not be used by itself as a machine safety system.

Registration Information

• Brand: Kayama
• Model: KRCDM09
• GTIN/EAN: 7900370019103

Kayama Quality

The KRCDM09 Dual Cycle Multifunction Timer Relay is part of Kayama's range of components designed for professional electrical control and automation systems.
